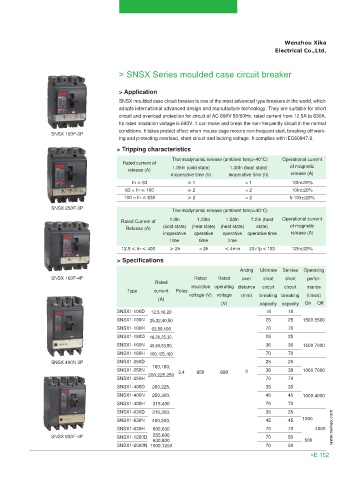

> SNSX Series moulded case circuit breaker

> Application
SNSX moulded case circuit breaker is one of the most advanced type breakers in the world, which
adopts international advanced design and manufacture technology. They are suitable for short
circuit and overload protection for circuit of AC 690V 50/60Hz, rated current from 12.5A to 630A.
Its rated insulation voltage is 690V. It can make and break the non-frequently circuit in the normal
conditions. It takes protect effect when mouse cage motors non-frequent start, breaking off work-
SNSX 100F-3P
ing and protecting overload, short circuit and lacking voltage. It complies with IEC60947-2.
> Tripping characteristics

Thermodynamic release (ambient temp+40°C) Operational current
Rated current of of magnetic
release (A) 1.05In (cold state) 1.30In (heat state)
inoperative time (h) inoperative time (h) release (A)
In 63 1 < 1 10In±20%
63 < In 100 2 < 2 10In±20%
100 < In 630 2 < 2 5-10In±20%
SNSX 250F-3P Thermodynamic release (ambient temp+40°C)

Rated Current of 1.0In 1.20In 1.50In 7.2In (heat Operational current
Release (A) (cold state) (heat state) (heat state) state) of magnetic
inoperative operative operative operative time release (A)
time time time
12.5 In 400 =2h < 2h 4min 2S<Tp 10S 12In±20%
> Specifications
Arcing Ultimate Servies Operating
SNSX 160F-4P Rated Rated over short short perfor-
Rated
insulation operating distance circuit circuit mance
Type current Poles
voltage (V) voltage (mm) breaking breaking (times)
(A)
(V) capacity capacity On Off
SNSX1-100D 12.5,16,20 18 18
SNSX1-100N 25,32,40,50 25 25 1500 8500
SNSX1-100H 63,80,100 70 70
SNSX1-160D 16,20,25,32, 25 25
SNSX1-160N 40,50,63,80, 36 36 1500 7000
SNSX1-160H 100,125,160 70 70
SNSX 400N 3P SNSX1-250D 25 25
160,180,
SNSX1-250N 3,4 950 690 0 36 36 1000 7000
200,225,250
SNSX1-250H 70 70
SNSX1-400D 200,225, 35 35
SNSX1-400N 250,300, 45 45 1000 4000
SNSX1-400H 315,400 70 70
SNSX1-630D 315,350, 35 35
SNSX1-630N 400,500, 45 45 1000
SNSX1-630H 600,630 70 70 4000 www.seicae.com
SNSX 630F-4P SNSX1-1200D 555,600 70 50
630,800 500
SNSX1-2500N 1000,1250 70 50
>E 152
