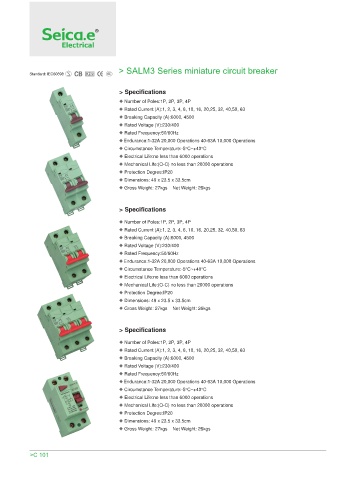

> SALM3 Series miniature circuit breaker
Standard: IEC60898

> Specifications
Number of Poles:1P, 2P, 3P, 4P
Rated Current (A):1, 2, 3, 4, 6, 10, 16, 20,25, 32, 40,50, 63
Breaking Capacity (A):6000, 4500
Rated Voltage (V):230/400
Rated Frequency:50/60Hz
Endurance:1-32A 20,000 Operations 40-63A 10,000 Operations
Circumstance Temperature:-5°C~+40°C
Electrical Life:no less than 6000 operations
Mechanical Life:(O-C) no less than 20000 operations
Protection Degree:IP20
Dimensions: 49 x 23.5 x 33.5cm
Gross Weight: 27kgs Net Weight: 26kgs

> Specifications

Number of Poles:1P, 2P, 3P, 4P
Rated Current (A):1, 2, 3, 4, 6, 10, 16, 20,25, 32, 40,50, 63
Breaking Capacity (A):6000, 4500
Rated Voltage (V):230/400
Rated Frequency:50/60Hz
Endurance:1-32A 20,000 Operations 40-63A 10,000 Operations
Circumstance Temperature:-5°C~+40°C
Electrical Life:no less than 6000 operations
Mechanical Life:(O-C) no less than 20000 operations
Protection Degree:IP20
Dimensions: 49 x 23.5 x 33.5cm
Gross Weight: 27kgs Net Weight: 26kgs

> Specifications

Number of Poles:1P, 2P, 3P, 4P
Rated Current (A):1, 2, 3, 4, 6, 10, 16, 20,25, 32, 40,50, 63
Breaking Capacity (A):6000, 4500
Rated Voltage (V):230/400
Rated Frequency:50/60Hz
Endurance:1-32A 20,000 Operations 40-63A 10,000 Operations
Circumstance Temperature:-5°C~+40°C
Electrical Life:no less than 6000 operations
Mechanical Life:(O-C) no less than 20000 operations
Protection Degree:IP20
Dimensions: 49 x 23.5 x 33.5cm
Gross Weight: 27kgs Net Weight: 26kgs

>C 101
