P. 112

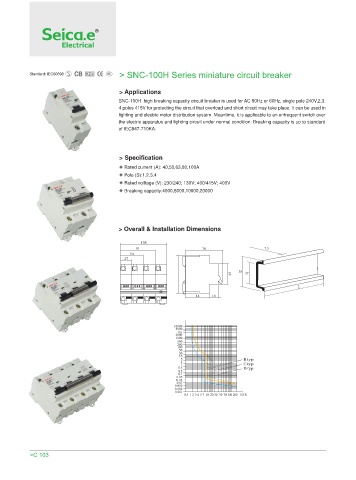

> SNC-100H Series miniature circuit breaker
Standard: IEC60898
> Applications
SNC-100H high breaking capacity circuit breaker is used for AC 50Hz or 60Hz, single pole 240V,2,3,
4 poles 415V for protecting the circuit that overload and short circuit may take place. It can be used in
lighting and electric motor distribution system. Meantime, it is applicable to an unfrequent switch over
the electric apparatus and lighting circuit under normal condition. Breaking capacity is up to standard
of IEC947-710KA.
> Specification
Rated current (A): 40,50,63,80,100A
Pole (S):1,2,3,4
Rated volltage (V): 230/240; 130V; 400/415V; 400V
Breaking capacity:4000,6000,10000,20000
> Overall & Installation Dimensions
>C 103
