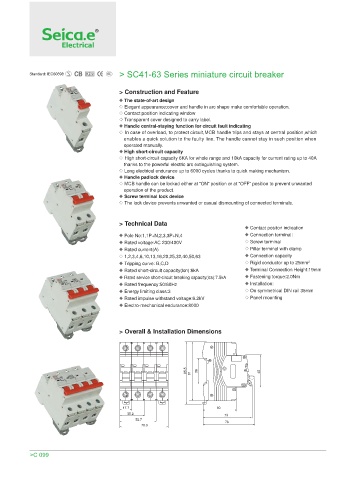

Standard: IEC60898 > SC41-63 Series miniature circuit breaker

> Construction and Feature
The state-of-art design
Elegant appearance;cover and handle in arc shape make comfortable operation.
Contact position indicating window
Transparent cover designed to carry label.
Handle central-staying function for circuit fault indicating
In case of overload, to protect circuit,MCB handle trips and stays at central position,which
enables a quick solution to the faulty line. The handle cannot stay in such position when
operated manually.
High short-circuit capacity
=High short-circuit capacity 6KA for whole range and 10kA capacity for current rating up to 40A
thanks to the powerful electric arc extinguishing system.
Long electrical endurance up to 6000 cycles thanks to quick making mechanism.
Handle padlock device
MCB handle can be locked either at “ON” position or at “OFF” position to prevent unwanted
operation of the product.
Screw terminal lock device
The lock device prevents unwanted or casual dismounting of connected terminals.

> Technical Data
Contact positon indication
Pole No:1,1P+N,2,3,3P+N,4 Connection terminal:
Rated voltage:AC 230/400V Screw terminal
Rated current(A) Pillar terminal with clamp
1,2,3,4,6,10,13,16,20,25,32,40,50,63 Connection capacity
Tripping curve: B,C,D Rigid conductor up to 25mm 2
Rated short-circuit capacity(lcn):6kA Terminal Connection Height:19mm
Rated service short-circuit breaking capacity(lcs):7.5kA Fastening torque:2.0Nm
Rated frequency:50/60Hz Installation:
Energy limiting class:3 On symmetrical DIN rail 35mm
Rated impulse withstand voltage:6.2kV Panel mounting
Electro-mechanical endurance:8000

> Overall & Installation Dimensions

>C 099
