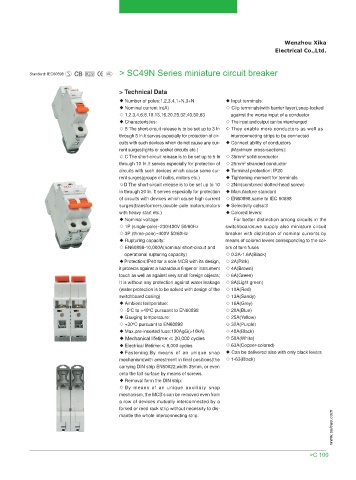

> SC49N Series miniature circuit breaker
Standard: IEC60898

> Technical Data
Number of poles:1,2,3,4,1+N,3+N Input terminals:
Nominal current In(A) =Clip terminals(with barrier layer),snap-locked
1,2,3,4,6,8,10,13,16,20,25,32,40,50,63 against the worse input of a conductor
Characteristics: The input and output can be interchanged
B The short-circuit release is to be set up to 3 In They enable more conductors as well as
through 5 In.It serves especially for protection of cir- interconnecting strips to be connected
cuits with such devices which do not cause any cur- Connect ability of conductors
rent surges(lights or socket circuits etc.) (Maximum cross-sections):
C The short-circuit release is to be set up to 5 In 35mm solid conductor
2
through 10 In.It serves especially for protection of 25mm stranded conductor
2
circuits with such devices which cause some cur- Terminal protection: IP20
rent surges(groups of bulbs, motors etc.) Tightening moment for terminals
D The short-circuit release is to be set up to 10 2Nm(combined slotted-head screw)
In through 20 In. It serves especially for protection Manufacture standard
of circuits with devices which cause high current EN60898,same to IEC 60898
surges(transformers,double-pole motors,motors Selectivity calss:3
with heavy start etc.) Colored levers:
Nominal voltage: For better distinction among circuits in the
1P (single-pole)~230/400V 50/60Hz switchboards,we supply also miniature circuit
3P (three-pole)~400V 50/60Hz breaker with distinction of nominal currents by
Rupturing capacity: means of colored levers corresponding to the col-
EN60898-10,000A(nominal short-circuit and ors of turn fuses
operational rupturing capacity) 0.2A-1.6A(Black)
Protection:IP40 for a sole MCB with its design, 2A(Pink)
it protects against a hazardous finger or instrument 4A(Brown)
touch as well as against very small foreign objects; 6A(Green)
It is without any protection against water leakage 8A(Light green)
(water protection is to be solved with design of the 10A(Red)
switchboard casing) 13A(Sandy)
Ambient temperatue: 16A(Grey)
-5 C to +40 C pursuant to EN60898 20A(Blue)
o
o
Gauging temperature: 25A(Yellow)
+30 C pursuant to EN60898 32A(Purple)
o
Max.pre-inserted fuse:100AgG(>10kA) 40A(Black)
Mechanical lifetime: 20,000 cycles 50A(White)
Electrical lifetime: 8,000 cycles 63A(Copper-colored)
Fastening:By means of an unique snap =Can be delivered also with only black levers
mechanism(with arrestment in final positions)the 1-63(Black)
carrying DIN strip EN50022,width 35mm, or even
onto the falt surface by means of screws.
Removal form the DIN strip:
By means of an unique auxiliary snap
mechanism, the MCB’s can be removed even from
a row of devices mutually interconnected by a
forked or reed rack strip without necessity to dis-
www.seicae.com
mantle the whole interconnecting strip.
