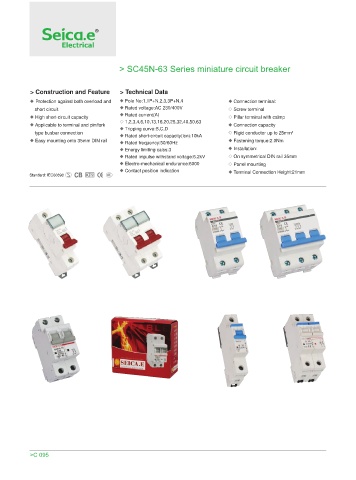

> SC45N-63 Series miniature circuit breaker
> Construction and Feature > Technical Data
=Protection against both overload and Pole No:1,1P+N,2,3,3P+N,4 Connection terminal:
short circuit Rated voltage:AC 230/400V Screw terminal
High short-circuit capacity Rated current(A) Pillar terminal with calmp
Applicable to terminal and pin/fork 1,2,3,4,6,10,13,16,20,25,32,40,50,63 Connection capacity
Tripping curve:B,C,D
type busbar connection Rated short-circuit capacity(lcn):10kA Rigid conductor up to 25mm 2
Easy mounting onto 35mm DIN rail Rated frequency:50/60Hz Fastening torque:2.0Nm
Energy limiting calss:3 Installation:
Rated impulse withstand voltage:6.2kV On symmetrical DIN rail 35mm
Electro-mechanical endurance:6000 Panel mounting
Contact position indication Terminal Connection Height:21mm
Standard: IEC60898
>C 095
