P. 103
Wenzhou Xika
Electrical Co.,Ltd.

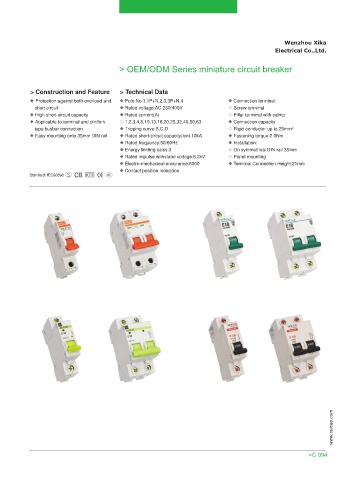

> OEM/ODM Series miniature circuit breaker
> Construction and Feature > Technical Data
=Protection against both overload and Pole No:1,1P+N,2,3,3P+N,4 Connection terminal:
short circuit Rated voltage:AC 230/400V Screw terminal
High short-circuit capacity Rated current(A) Pillar terminal with calmp
Applicable to terminal and pin/fork 1,2,3,4,6,10,13,16,20,25,32,40,50,63 Connection capacity
type busbar connection Tripping curve:B,C,D Rigid conductor up to 25mm 2
Easy mounting onto 35mm DIN rail Rated short-circuit capacity(lcn):10kA Fastening torque:2.0Nm
Rated frequency:50/60Hz Installation:
Energy limiting calss:3 On symmetrical DIN rail 35mm
Rated impulse withstand voltage:6.2kV Panel mounting
Electro-mechanical endurance:6000 Terminal Connection Height:21mm
Contact position indication
Standard: IEC60898
www.seicae.com
>C 094
