封闭母线综述 封闭母线综述

母线槽功能单元 母线的连接安装
Functional Units of Busbar Trunking System

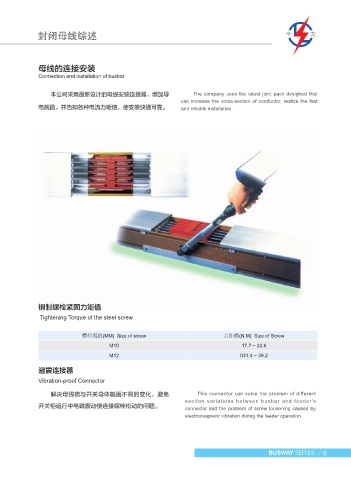

Connection and installation of busbar

本公司采用最新设计的母线安装连接器，增加导 The company uses the latest joint pack desighed that
铝壳母线槽的功能单元外壳采用压制铝连接，可保 can increase the cross-section of conductor, realize the fast
证外壳美观，接地连续性的可靠。 电截面。并告知各种电流力矩值，使安装快捷可靠。 and reliable installation.
The cover of the Functional Units of busbar with AL cover
is connected by aluminium die-casting, that ensures the

beautiful surface and the reliability of earthing continuity.

高强封闭母线槽外壳的连接均采用铜质垫圈焊接，

保证组合装配接地连续性。
The cover of busbar with Fe cover is connected by welded
copper screw, that ensures assembly earthing continuity.

调节母线Adjustable Busbar

解决母线安装尺寸误差，调节范围±150mm
提高母线始端安装连接防护性能
To solve the dimensional deviation of busbar installation,

adjust range:±150mm 钢制螺栓紧固力矩值
Rise the protection degree of busbar entry unit connection. Tightening Torque of the steel screw

螺栓规格(MM) Size of screw 力矩值(N.M) Size of Screw

M10 17.7 ~ 22.6
弹簧支架Spring Brackets M12 031.4 ~ 39.2
用于母线垂直安装，固定
避震连接器
防止母线运行过程中因电磁震动造成连接螺栓松动 Vibration-proof Connector
解决母线运行过程中热膨胀
解决母线槽与开关导体截面不同的变化，避免 This connector can solve the problem of different
Used to install and fix busbar vertically section variations between busbar and feeder's
开关柜运行中电磁震动使连接螺栓松动的问题。
Avoid the loose screw because of electromagnetic vibration connector and the problem of screw loosening caused by
electromagnetic vibration during the feeder operation.
during operation
Solve the heat expansion of busbar during operation

5 BUSWAY SERIES BUSWAY SERIES 6
