封闭母线综述 封闭母线综述
技术数据

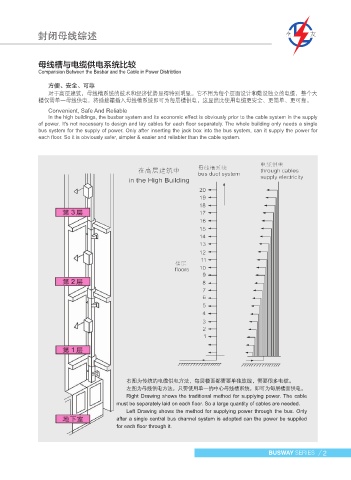

The Main Technical Data 母线槽与电缆供电系统比较
Comparision Between the Busbar and the Cable in Power Distribtion
本公司生产的各种系列母线槽，适用于高层建筑，多层工业厂房，机床密集的车间，产品工艺多变的车
间，老车间及厂房的改造，各种实验室、展览馆、体育馆、宾馆、银行、娱乐等场所作电力馈电及配电使 方便、安全、可靠
用。具有安全可靠，安装方便，施工灵活，体积小容量大，设计施工周期短，使用寿命长等特点，具体的技 对于高层建筑，母线槽系统的技术和经济优势显得特别明显。它不用为每个层面设计和敷设独立的电缆，整个大
术数据见下表： 楼仅需单一母线供电，将插接箱插入母线槽系统即可为每层楼供电，这显然比使用电缆更安全、更简单、更可靠。
The various series of bus channels produced by this company are applicable for high buildings,industrial factory Convenient, Safe And Reliable
building with many floors, workshops with concentrated lathes and with varied technolotgy, the old workshops rebuilt, In the high buildings, the busbar system and its economic effect is obviously prior to the cable system in the supply
various labs, exhibition halls, gyms, hotels, banks, entertainment and other places,and used for feeding and distributing of power. It's not necessary to design and lay cables for each floor separately. The whole building only needs a single
electricity. It has the characteristics of sagfty & reliability, easy installation, flexible construction, small volume but large bus system for the supply of power. Only after inserting the jack box into the bus system, can it supply the power for
capacity, short cycle for construction, long service life and the like. The concrete technical parameters are as follows: each floor. So it is obviously safer, simpler & easier and reliabler than the cable system.
IEC 439-2-1982 ZBK36002-89
符合标准 Standard
GB 1497 GB 7251-87
海拔 Sea Level m 不大于2000 Not higher than 2000
-5—+40(24小时内平均温度不大于+35℃)
环境温度 Ambient Temp ℃
-5—+40(average temp is not higher than +35 within 24 hrs.)
+40℃时不大于50%，+20℃时不大于90%
相对湿度 Ralative Humidity
Not higher than 50% when +40℃; not higher than 90% when +20℃;
防护等级 Protective Grade IP42(带附件达IP54)
安装类别 Installation Categwry IV类 Clnsses IV
污染等级 Polluted Grade 2级 Grade
额定绝缘电压 V(AC) 500
Rated Insrlation Voltage
额定工作电压 V(AC) 400
Rated Working Voltage
额定频率 HZ 50-60
Rated Frgquency
额定工作电流 A 100 250 400 630 800 1000
Rated Working Current
电阻 Resistance R×10Ω/m 967 94.4 70.8 73.0 61.4 46.6
阻抗 Impendence Z×10Ω/m 106.8 103.8 83.2 72.4 69.8 53.8
电压降 Redution V/m 0.0432 0.0475 0.0360 0.089 0.1 0.0485
短路强度t=lS KA(峰值) 20 35 50 70 75 85
Short Circuit Strenght t=lS KA(Peak Value)
额定工作电流 A 1250 1600 2000 2500 3150 4000
Rated Working Current
电阻 Resistance R×10Ω/m 28.9 23.6 21.3 14.4 12.1 10.0
阻抗 Impendence Z×10Ω/m 40.6 38.0 24.1 19.7 16.5 12.1
电压降 Reution V/m 0.059 0.063 0.0814 0.0705 右图为传统的电缆供电方法，每层楼面都需要单独放线，需要很多电缆。
短路强度t=1S KA(峰值) 100 115 129 左图为母线供电方法，只要使用单一的中心母线槽系统，即可为每层楼面供电。
Short Circuit Strenght t=1Sz Right Drawing shows the traditional method for supplying power. The cable
各部位温升 (K) 连接端子 60 金属外壳 30 绝缘件表面 40 must be separately laid on each floor. So a large quantity of cables are needed.
Temp.Rise of Each Position Connective terminal 60 Metal shell 30 Surface of insulating part 40 Left Drawing shows the method for supplying power through the bus. Only
电强度 Dielection Stength 交流工频电压有效值 3750V Imin A.C. working frequency(effective value) after a single central bus channel system is adopted can the power be suppiled
for each floor through it.
绝缘电阻 Insulating Resistance 相与相及外壳之间不小于20mΩ not less than 20mΩ between phaceses and the shells
