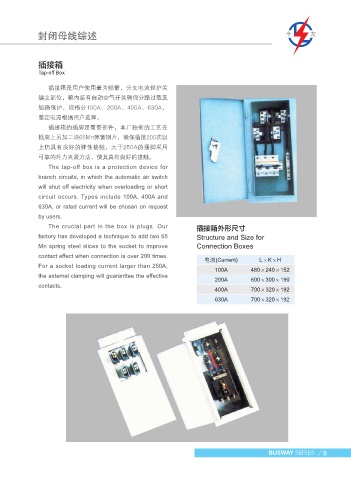

封闭母线综述 封闭母线综述

插接箱
母线的分支插接箱
Tap-off Box of Busbar Tap-off Box
● 经济型开门操作 ● Economical type door coupling rotary operating mechanisms 插接箱是用户使用最为频繁，分支电流保护关
● 门外操作 ● Operating outdoor 键之部位，箱内装有自动空气开关确保分路过载及

● 电动远程操作 ● Remote motor operation 短路保护，规格分100A、200A、400A、630A，
● 电流规格：100A、250A、400A、630A ● Rated Current level: 100A, 250A, 400A, 630A 整定电流根据用户选择。
● 开关的配置可根据用户选择 ● Switch selection according to customer 插接箱的插脚是重要部件，本厂独有的工艺在
插脚上另加二块65Mn弹簧钢片，确保插接200次以
上仍具有良好的弹性接触，大于250A的插脚采用
可靠的外力夹紧方法，使其具有良好的接触。
The tap-off box is a protection device for
branch circuits, in which the automatic air switch
will shut off electricity when overloading or short
circuit occurs. Types include 100A, 400A and

630A, or rated current will be chosen on request
by users.
The crucial part in the box is plugs. Our 插接箱外形尺寸
factory has developed a technique to add two 65 Structure and Size for
Mn spring steel slices to the socket to improve Connection Boxes
contact effect when connection is over 200 times.
电流(Current) L×K×H
For a socket loading current larger than 250A,
100A 480×240×152
the extemal clamping will guaranttee the effective
200A 600×300×190
contacts.
400A 700×320×192

630A 700×320×192
