CD-CMC密集型母线槽系列 CD-CMC密集型母线槽系列

CD-CMC密集型母线槽
XLC Intensive bus groove series

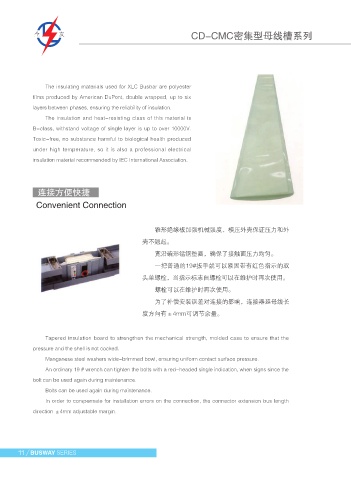

The insulating materials used for XLC Busbar are polyester
技术参数 Technical data
films produced by American DuPont, double wrapped, up to six
layers between phases, ensuring the reliability of insulation. 电气参数 Electic data

The insulation and heat-resisting class of this material is
铜母线（50Hz，温度20℃）
B-class, withstand voltage of single layer is up to over 10000V.
Copper busway (50Hz, temperature ambient 20℃)
Toxic-free, no substance harmful to biological health produced

under high temperature, so it is also a professional electrical 每米电压降/Voltage drop permeter (V)
额定电流 电阻/米 电抗/米 阻抗/米
insulation material recommended by IEC International Association. Ie (A) R (μΩ) X (μΩ) Z (μΩ) 功率因数/Power factorcosf
0.6 0.7 0.8 0.9 1.0
400 131.8 36.3 136.7 0.075 0.082 0.088 0.093 0.091
630 98.8 31.1 103.6 0.092 0.100 0.107 0.112 0.108
连接方便快捷 800 79.1 27.5 83.7 0.096 0.104 0.111 0.115 0.110

Convenient Connection 1000 60.8 23.8 65.3 0.096 0.103 0.109 0.113 0.105

1250 46.5 20.5 50.8 0.096 0.102 0.107 0.110 0.101
1600 32.9 16.6 36.9 0.092 0.097 0.101 0.102 0.091
锥形绝缘板加强机械强度、模压外壳保证压力和外
2000 24.7 13.6 28.2 0.089 0.094 0.097 0.098 0.086
壳不翘起。 2500 18.8 10.9 21.8 0.087 0.091 0.094 0.094 0.082

宽沿碗形锰钢垫圈，确保了接触面压力均匀。 3200 16.5 9.6 19.1 0.096 0.100 0.103 0.104 0.090
4000 12.4 6.7 14.1 0.089 0.093 0.096 0.097 0.086
一把普通的19#扳手就可以紧固带有红色指示的双
5000 9.4 4.0 10.2 0.077 0.082 0.086 0.089 0.082
头单螺栓，当指示标志自螺栓可以在维护时再次使用。

螺栓可以在维护时再次使用。 铝母线（50Hz，温度20℃）
Aluminum busway (50Hz, temperature ambient 20℃)
为了补偿安装误差对连接的影响，连接器延母线长

度方向有±4mm可调节余量。 每米电压降/Voltage drop permeter (V)
额定电流 电阻/米 电抗/米 阻抗/米 功率因数/Power factorcosf
Ie (A) R (μΩ) X (μΩ) Z (μΩ)
0.6 0.7 0.8 0.9 1.0
Tapered insulation board to strengthen the mechanical strength, molded case to ensure that the
250 173.8 31.3 176.6 0.056 0.062 0.068 0.074 0.075
pressure and the shell is not cocked.
400 139.1 27.7 141.8 0.073 0.081 0.089 0.095 0.096
Manganese steel washers wide-brimmed bowl, ensuring uniform contact surface pressure. 630 107.0 24.0 109.6 0.091 0.100 0.109 0.116 0.117

An ordinary 19 # wrench can tighten the bolts with a red-headed single indication, when signs since the 800 86.9 21.3 89.5 0.096 0.105 0.114 0.121 0.120
bolt can be used again during maintenance. 1000 66.2 18.2 68.7 0.094 0.103 0.111 0.117 0.115
Bolts can be used again during maintenance. 1250 49.7 15.1 51.9 0.091 0.099 0.106 0.111 0.108

In order to compensate for installation errors on the connection, the connector extension bus length 1600 36.6 12.0 38.5 0.087 0.095 0.101 0.106 0.101
2000 33.1 11.0 34.9 0.099 0.107 0.115 0.120 0.115
direction ±4mm adjustable margin.
2500 24.8 8.1 26.1 0.093 0.100 0.107 0.112 0.108
3200 18.3 5.1 19.0 0.083 0.091 0.098 0.103 0.101
4000 14.5 3.1 14.8 0.078 0.086 0.093 0.100 0.101

11 BUSWAY SERIES BUSWAY SERIES 12
