封闭母线综述 封闭母线综述

母线槽安装示意图 母线槽功能单元
Layout of Busbar Installation Function Units of Busbar Trunking System
Busbar trunking system is widely used in industry and
母线槽的广泛应用，满足用户的各种条件上下
meets the requirements of the direction under all possible
conditions of the customers, besides the standard units
的走向，本公司除所介绍标准单元外，可现场测量
described here, The company can also manufacture that
定制。 according to the detailed measurement on site.

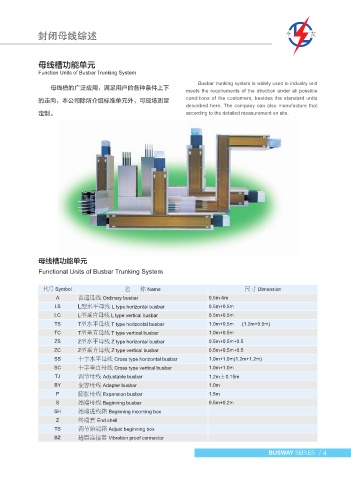

母线槽功能单元
Functional Units of Busbar Trunking System

代号 Symbol 名 称 Name 尺寸 Dimension
A 普通母线 Ordinary busbar 0.5m-6m
LS L型水平母线 L type horizontal busbar 0.5m+0.5m
LC L型垂直母线 L type vertical busbar 0.5m+0.5m
TS T型水平母线 T type horizontal busbar 1.0m+0.5m (1.2m+0.5m)
TC T型垂直母线 T type vertical busbar 1.0m+0.5m
ZS Z型水平母线 Z type horizontal busbar 0.5m+0.5m+0.5
ZC Z型垂直母线 Z type vertical busbar 0.5m+0.5m+0.5
SS 十字水平母线 Cross type horizontal busbar 1.0m+1.0m(1.2m+1.2m)
SC 十字垂直母线 Cross type vertical busbar 1.0m+1.0m
TJ 调节母线 Adjustable busbar 1.2m±0.15m
BY 变容母线 Adapter busbar 1.0m
P 膨胀母线 Expansion busbar 1.5m
S 始端母线 Beginning busbar 0.5m+0.2m
SH 始端进线箱 Beginning incoming box
Z 终端套 End shell
TS 调节始端箱 Adjust beginning box
BZ 避震连接器 Vibration proof connector

3 BUSWAY SERIES BUSWAY SERIES 4
