型式和技术参数
1.LQJ 系列铝合金桥架可分为梯级式、槽式、托盘式，分别用T、C、P表示。 LQJ铝合金线槽系列
2.梯级式桥架具有良好的通风性能，不防尘，不防干扰。槽式桥架具有防尘、防干扰性能。
3.桥架长度≤6m，当长度＞6m 时可接受特殊订货。 LQJ Al-alloy Cable Tray Model

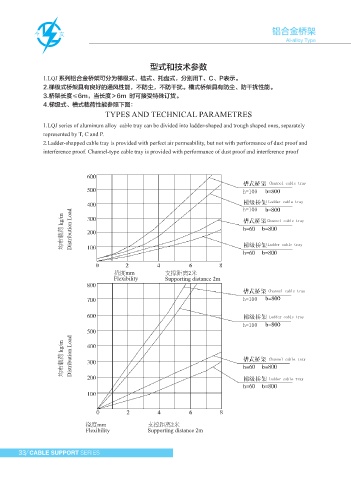

4.梯级式、槽式载荷性能参照下图：
TYPES AND TECHNICAL PARAMETRES

1.LQJ series of aluminum alloy cable tray can be divided into ladder-shaped and trough shaped ones, separately
represented by T, C and P.
2.Ladder-shapped cable tray is provided with perfect air permeability, but not with performance of dust proof and
interference proof. Channel-type cable tray is provided with performance of dust proof and interference proof

Channel cable tray
H
h=100
Ladder cable tray B
h=100
均布载荷 kg/m Distribution Load Channel cable tray

Ladder cable tray

H
挠度mm 支撑距离2米
Flexibility Supporting distance 2m B

Channel cable tray
h=100

Ladder cable tray
h=100 型 号
Model H W
LQJ-WC-2.5-5
50
均布载荷 kg/m Distribution Load Channel cable tray LQJ-WC-2.5-10 25 100
150
LQJ-WC-2.5-15
LQJ-WC-2.5-20
200
50
LQJ-WC5-5
150
LQJ-WC5-15
Ladder cable tray LQJ-WC5-10 50 100
LQJ-WC5-20 200 铝 合金
LQJ-WC10-5 100
LQJ-WC10-10 150
100
LQJ-WC10-15 200
LQJ-WC10-20 250
挠度mm 支撑距离2米
Flexibility Supporting distance 2m
