竖井 铝合金桥架
Shafts Al-alloy Type

电缆竖井
cable shaft

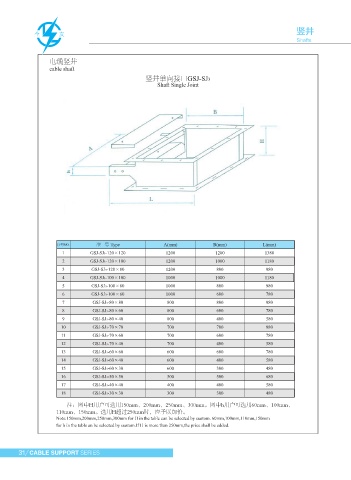

竖井单向接口GSJ-SJ3 铝合金电缆桥架
Shaft Single Joint
LQJ系列

LQJ系列铝合金桥架是清华大学与我厂联合开发研制成功的新型产品。随着现代化工业的飞

速发展，动力电缆、控制电缆和通信电缆的需求量猛增，因此，电缆桥架得到了广泛应用。它的

作用能使厂用、船用乃至海上采油平台的电缆敷实现了标准化、系列化和通用化的要求，为工程

设计、施工安装、安全生产提供了方便。

我们等效采用美国材料标准生产的铝合金桥架具有高抗蚀性能，由于对桥架铝型材截面设计的

合理，整体结构紧凑，安装灵活多变致使本产品具有载荷大、重量轻、施工方便、外形美观等突

出优点，在国内处于领先地位。

序号NO. 型 号 Type A(mm) B(mm) L(mm)
1 GSJ-SJ3-120×120 1200 1200 1380 Al-alloy Type cable tray
2 GSJ-SJ3-120×100 1200 1000 1180
3 GSJ-SJ3-120×80 1200 800 980 LQJ series
4 GSJ-SJ3-100×100 1000 1000 1180
5 GSJ-SJ3-100×80 1000 800 980 LQJ series of aluminum alloy cable are new varieties of products researched and produced by our
6 GSJ-SJ3-100×60 1000 600 780
7 GSJ-SJ3-80×80 800 800 980 factoryand Tsinghuauniversity. with the rapid development of modern industry, the requirement of power
8 GSJ-SJ3-80×60 800 600 780 cable, control cable and communication cable increases so quickly, therefore cables are widely used.
9 GSJ-SJ3-80×40 800 400 580
10 GSJ-SJ3-70×70 700 700 880 They can be used for the factory and the ship, so that the cable laying of the oil extraction terrace in
11 GSJ-SJ3-70×60 700 600 780 the sea reaches standardization, and general purpose. They give the convenience to the project design,
12 GSJ-SJ3-70×40 700 400 580
13 GSJ-SJ3-60×60 600 600 780 construction installation and safe production.
14 GSJ-SJ3-60×40 600 400 580 The aluminum alloy cable produced by our factory is adopted with the same effect by the standardization
15 GSJ-SJ3-60×30 600 300 480
16 GSJ-SJ3-50×50 500 500 680 of American material, having the function of high touch-resistance. Because of the reasonable design of
17 GSJ-SJ3-40×40 400 400 580 the cross section of aluminum material, the integral structure is so compact, flexible and changeable in 铝 合金
18 GSJ-SJ3-30×30 300 300 480
installation that it has such advantages as heavy load, light weight, convenient installation and beautiful
注：图中H用户可选用150mm、200mm、250mm、300mm。图中h用户可选用60mm、100mm、
110mm、150mm。选用H超过250mm时，应予以加价。 model, holding a safe lead at home and abroad.
Note:150mm,200mm,250mm,300mm for H in the table can be selected by custom. 60mm,100mm,110mm,150mm
for h in the table an be selected by custom.If H is more than 250mm,the price shall be added.
