P. 33
竖井 竖井
Shafts Shafts
电缆竖井

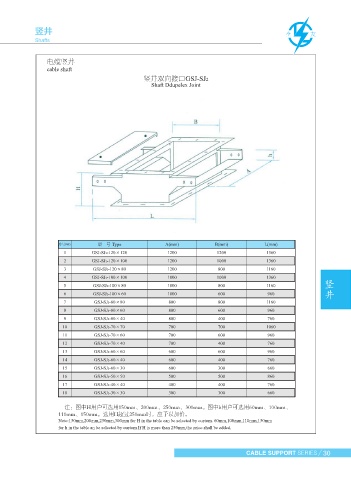

竖 井 cable shaft 竖井双向接口GSJ-SJ2
Shafts Shaft Ddupelex Joint
XQJ-GSJ
竖井安装示意图:
schematic diagram for shaft installation
电缆竖井适用于各种井道垂直引
上、引下电缆敷设装置。
Cable shafts applies to vertical cable
laying in various shafts
序号NO. 型 号 Type A(mm) B(mm) L(mm)
1 GSJ-SJ2-120×120 1200 1200 1560
竖井直通井节GSJ-SJ1
2 GSJ-SJ2-120×100 1200 1000 1360
序号NO. 型 号 Type A(mm) B(mm) m n D 3 GSJ-SJ2-120×80 1200 800 1160
井 竖 1 GSJ-SJ1-120×120 1200 1200 8 20 16 4 GSJ-SJ2-100×100 1000 1000 1360 井 竖
2 GSJ-SJ1-120×100 1200 1000 8 20 16 5 GSJ-SJ2-100×80 1000 800 1160
3 GSJ-SJ1-120×80 1200 800 8 20 16 6 GSJ-SJ2-100×60 1000 600 960
4 GSJ-SJ1-100×100 1000 1000 5 16 10 7 GSJ-SJ2-80×80 800 800 1160
5 GSJ-SJ1-100×80 1000 800 5 14 10 8 GSJ-SJ2-80×60 800 600 960
6 GSJ-SJ1-100×60 1000 600 5 14 10 9 GSJ-SJ2-80×40 800 400 760
7 GSJ-SJ1-80×80 800 800 3 14 6 10 GSJ-SJ2-70×70 700 700 1060
8 GSJ-SJ1-80×60 800 600 3 14 6 11 GSJ-SJ2-70×60 700 600 960
9 GSJ-SJ1-80×40 800 400 3 10 6 12 GSJ-SJ2-70×40 700 400 760
10 GSJ-SJ1-70×70 700 700 3 10 6 13 GSJ-SJ2-60×60 600 600 960
11 GSJ-SJ1-70×60 700 600 3 10 6 14 GSJ-SJ2-60×40 600 400 760
12 GSJ-SJ1-70×40 700 400 3 8 6 15 GSJ-SJ2-60×30 600 300 660
13 GSJ-SJ1-60×60 600 600 3 10 6 16 GSJ-SJ2-50×50 500 500 860
14 GSJ-SJ1-60×40 600 400 3 8 6 17 GSJ-SJ2-40×40 400 400 760
15 GSJ-SJ1-60×30 600 300 3 8 6 18 GSJ-SJ2-30×30 300 300 660
16 GSJ-SJ1-50×50 500 500 3 6 4
17 GSJ-SJ1-40×40 400 400 2 6 4 注：图中H用户可选用150mm、200mm、250mm、300mm。图中h用户可选用60mm、100mm、
18 GSJ-SJ1-30×30 300 300 2 6 4 110mm、150mm。选用H超过250mm时，应予以加价。
Note:150mm,200mm,250mm,300mm for H in the table can be selected by custom. 60mm,100mm,110mm,150mm
注：图中m代表电缆横担，n代表法兰螺丝，D代表竖井固定卡。 for h in the table an be selected by custom.If H is more than 250mm,the price shall be added.
Note:m stands for cable transverse brace,n stands for flange thread and D stands for shaft fixed joint.
29 CABLE SUPPORT SERIES CABLE SUPPORT SERIES 30
