铝合金桥架-型材桥架 铝合金桥架
Al-alloy Type Al-alloy Type

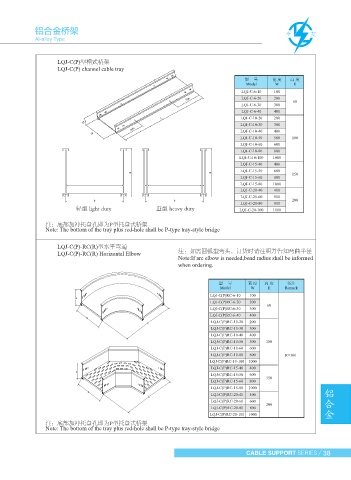

LQJ-TRT型凸型二通 LQJ-C(P)型槽式桥架
LQJ-TRT convex two-way Elbow LQJ-C(P) channel cable tray

型 号 宽 度 高 度
Model W H
LQJ-C-6-10 100
型 号 宽 度 高 度 备注 LQJ-C-6-20 200
Model W H Remark LQJ-C-6-30 300 60
LQJ-TRT-6-10 100 LQJ-C-6-40 400
LQJ-TRT-6-20 200 60 LQJ-C-10-20 200
LQJ-TRT-6-30 300 LQJ-C-10-30 300
LQJ-TRT-6-40 400 LQJ-C-10-40 400
LQJ-TRT-10-20 200 LQJ-C-10-50 500 100
LQJ-TRT-10-30 300 LQJ-C-10-60 600
LQJ-TRT-10-40 400 LQJ-C-10-80 800
LQJ-TRT-10-50 500 100 LQJ-C-10-100 1000
LQJ-TRT-10-60 600 LQJ-C-15-40 400
LQJ-TRT-10-80 800 R=300 LQJ-C-15-50 600
LQJ-TRT-10-100 1000 LQJ-C-15-60 800 150
LQJ-TRT-15-40 400 LQJ-C-15-80 1000
LQJ-TRT-15-50 600 LQJ-C-20-40 400
150
LQJ-TRT-15-60 800 LQJ-C-20-60 600
LQJ-TRT-15-80 1000 LQJ-C-20-80 800 200
LQJ-TRT-20-40 400 轻型 light duty 重型 heavy duty LQJ-C-20-100 1000
LQJ-TRT-20-60 600
LQJ-TRT-20-80 800 200 注：底部加冲托盘孔即为P型托盘式桥架
LQJ-TRT-20-100 1000 Note: The bottom of the tray plus red-hole shall be P-type tray-style bridge

LQJ-C(P)-RC(R)型水平弯通
LQJ-ART型凹型二通 LQJ-C(P)-RC(R) Horizontal Elbow 注：如需圆弧型弯头，订货时请注明并告知弯曲半径
LQJ-ART concave two-way Elbow Note:If arc elbow is needed,bend radius shall be informed
when ordering.

型 号 宽 度 高 度 备注 型 号 宽 度 高 度 备注
Model W H Remark Model W H Remark
LQJ-ART-6-10 100 LQJ-C(P)RC-6-10 100
LQJ-ART-6-20 200 LQJ-C(P)RC-6-20 200 60
LQJ-ART-6-30 300 60 LQJ-C(P)RC-6-30 300
LQJ-ART-6-40 400 LQJ-C(P)RC-6-40 400
LQJ-ART-10-20 200 LQJ-C(P)RC-10-20 200
LQJ-ART-10-30 300 LQJ-C(P)RC-10-30 300
LQJ-ART-10-40 400 LQJ-C(P)RC-10-40 400
LQJ-ART-10-50 500 100 LQJ-C(P)RC-10-50 500 100
LQJ-ART-10-60 600 LQJ-C(P)RC-10-60 600
LQJ-ART-10-80 800 R=300 LQJ-C(P)RC-10-80 800 R=300
LQJ-ART-10-100 1000 LQJ-C(P)RC-10-100 1000
LQJ-ART-15-40 400 LQJ-C(P)RC-15-40 400
LQJ-ART-15-50 600 150 LQJ-C(P)RC-15-50 600 150
LQJ-ART-15-60 800 LQJ-C(P)RC-15-60 800 铝 合金
LQJ-ART-15-80 1000 LQJ-C(P)RC-15-80 1000
LQJ-ART-20-40 400 LQJ-C(P)RC-20-40 400
LQJ-ART-20-60 600 LQJ-C(P)RC-20-60 600 200
LQJ-ART-20-80 800 200 LQJ-C(P)RC-20-80 800
LQJ-ART-20-100 1000 LQJ-C(P)RC-20-100 1000
注：底部加冲托盘孔即为P型托盘式桥架
Note: The bottom of the tray plus red-hole shall be P-type tray-style bridge

37 CABLE SUPPORT SERIES CABLE SUPPORT SERIES 38
