一次拉制桥架 高强轻型电缆桥架
Channel Type Channel Type

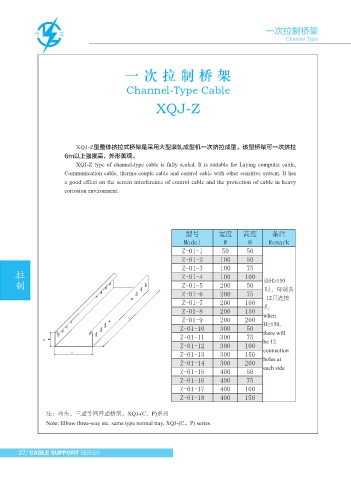

一 次 拉 制 桥 架 高 强 节 能 桥 架

Channel-Type Cable High-strength energy bridge

XQJ-Z XQJ-X

XQJ-X高强节能桥架是我公司根据美国NEMA
标准开发的新型产品，产品采用凹凸型瓦楞结构底
板与高强挤拉薄钢型材拼焊而成，具有轻质、高
XQJ-Z型整体挤拉式桥架是采用大型滚轧成型机一次挤拉成型。该型桥架可一次挤拉 L 强、节能等性能，且可通过各种不同表面处理达到
6m以上强度高，外形美观。 各种防腐性能。
XQJ-X high-strength energy bridge is a new
XQJ-Z type of channel-type cable is fully sealed. It is suitable for Laying computer cable, H type product developed by the Company according
Communication cable, thermo-couple cable and control cable with other sensitive system. It has B to USA NEMA standard. The product is welded with
a good effect on the screen interference of control cable and the protection of cable in heavy corrugation type plate and high-strength thin steels,
L
corrosion environment. which is provided with performance of light, high
strength, and power saving. It is possible to achieve
H
various preservative performance via different surface
B
treatment.
表一：槽式（托盘式）桥架 表二：梯式桥架
Table1: channel(tray)cable tray Table2: ladder cable tray
型号 宽度 高度 备注 型号 宽度 高度 备注 型号 宽度 高度 备注
Model W H Remark Model W H Remark Model W H Remark
Z-01-1 50 50 X-C(P)-01-1 200 100 X-T-01-1 200 100
Z-01-2 100 50 X-C(P)-01-2 200 150 X-T-01-2 200 150
拉 制 Z-01-3 100 75 X-C(P)-01-3 300 100 X-T-01-3 300 100

Z-01-4 100 100 当H≥150 X-C(P)-01-4 300 150 当H≥100 X-T-01-4 300 150 当H≥150
Z-01-5 200 50 时，每端各 X-C(P)-01-5 400 100 X-T-01-5 400 100
Z-01-6 200 75 12只连接 X-C(P)-01-6 400 150 时，每端 X-T-01-6 400 150 时，每端
Z-01-7 200 100 孔 X-C(P)-01-7 400 200 各 8只连 X-T-01-7 400 200 各 12只连 节能 高 强
Z-01-8 200 150 X-C(P)-01-8 500 100 接孔 X-T-01-8 500 100 接孔
L when
Z-01-9 200 200 H≥150, X-C(P)-01-9 500 150 when H≥ X-T-01-9 500 150 when H≥
Z-01-10 300 50 there will X-C(P)-01-10 500 200 100, X-T-01-10 500 200 150,
Z-01-11 300 75 X-C(P)-01-11 600 100 there will X-T-01-11 600 100 there will
H be 12
Z-01-12 300 100 X-C(P)-01-12 600 150 be 8 X-T-01-12 600 150 be 12
B connection
Z-01-13 300 150 holes at X-C(P)-01-13 600 200 connection X-T-01-13 600 200 connection
Z-01-14 300 200 each side X-C(P)-01-14 800 100 holes at X-T-01-14 800 100 holes at
Z-01-15 400 50 X-C(P)-01-15 800 150 X-T-01-15 800 150
Z-01-16 400 75 X-C(P)-01-16 800 200 each side X-T-01-16 800 200 each side
Z-01-17 400 100 X-C(P)-01-17 1000 100 X-T-01-17 1000 100
Z-01-18 400 150 X-C(P)-01-18 1000 150 X-T-01-18 1000 150
X-C(P)-01-19 1000 200 X-T-01-19 1000 200
注：弯头、三通等同普通桥架、XQJ-(C、P)系列 底板冲孔即为托盘式桥架。
Note: Elbow three-way etc. same type normal tray, XQJ-(C、P) series 注：弯头、三通等同普通桥架、XQJ-(C、T、P)系列
Note: Elbow three-way etc. same type normal tray, XQJ-(C、T、P) series
