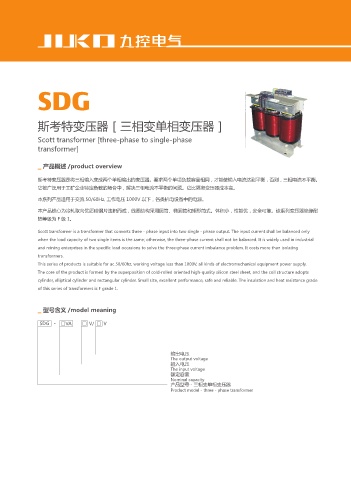

SDG

斯考特变压器［三相变单相变压器］

Scott transformer [three-phase to single-phase
transformer]

▁ 产品概述 /product overview

斯考特变压器是将三相输入变成两个单相输出的变压器。要求两个单项负载容量相同，才能使输入电流达到平衡，否则，三相电流不平衡。
它被广泛用于工矿企业特定负载的场合中，解决三相电流不平衡的问题。它比隔离变压器成本高。
本系列产品适用于交流 50/60Hz, 工作电压 1000V 以下，各类机电设备中的电源。

本产品铁心为冷轧取向优质硅钢片迭积而成，线圈结构采用圆筒、椭圆筒和矩形筒式。体积小，性能优，安全可靠。该系列变压器绝缘耐
热等级为 F 级 1。

Scott transformer is a transformer that converts three - phase input into two single - phase output. The input current shall be balanced only
when the load capacity of two single items is the same; otherwise, the three-phase current shall not be balanced. It is widely used in industrial
and mining enterprises in the specific load occasions to solve the three-phase current imbalance problem. It costs more than isolating
transformers.
This series of products is suitable for ac 50/60hz, working voltage less than 1000V, all kinds of electromechanical equipment power supply.
The core of the product is formed by the superposition of cold-rolled oriented high-quality silicon steel sheet, and the coil structure adopts
cylinder, elliptical cylinder and rectangular cylinder. Small size, excellent performance, safe and reliable. The insulation and heat resistance grade
of this series of transformers is F grade 1.

▁ 型号含义 /model meaning

SDG - □VA □ V / □ V

输出电压
The output voltage
输入电压
The input voltage
额定容量
Nominal capacity
产品型号 - 三相变单相变压器
Product model - three - phase transformer 31
