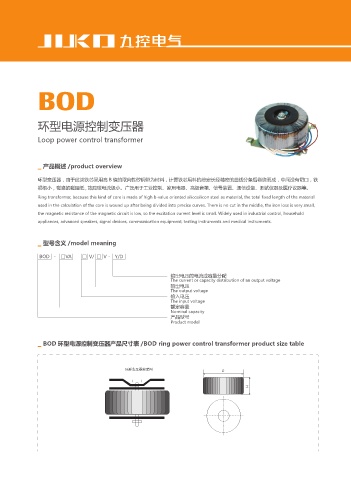

Page 36 - 九控电气科技有限公司

BOD

环型电源控制变压器

Loop power control transformer

▁ 产品概述 /product overview

环型变压器，由于此类铁芯采用高 B 值的取向性矽钢带为材料，计算铁芯用料的总定长经精密的曲线分条后卷绕而成，中间没有切口，铁
损很小，磁路的磁阻低 , 故励磁电流级小。广泛用于工业控制、家用电器、高级音箱、信号装置、通信设备、测试仪器及医疗议器等。
Ring transformer, because this kind of core is made of high b-value oriented silicosilicon steel as material, the total fixed length of the material
used in the calculation of the core is wound up after being divided into precise curves. There is no cut in the middle, the iron loss is very small,
the magnetic resistance of the magnetic circuit is low, so the excitation current level is small. Widely used in industrial control, household
appliances, advanced speakers, signal devices, communication equipment, testing instruments and medical instruments.

▁ 型号含义 /model meaning

BOD - □VA □ V / □ V - Y/D

输出电压的电流或容量分配
The current or capacity distribution of an output voltage
输出电压
The output voltage
输入电压
The input voltage
额定容量
Nominal capacity
产品型号
Product model

▁ BOD 环型电源控制变压器产品尺寸表 /BOD ring power control transformer product size table

ဖ्ԪԌ٧߶ᜈڎ %

) 27
