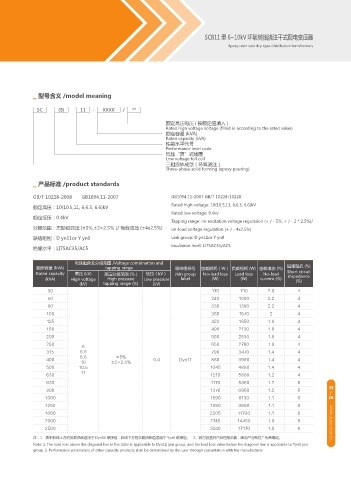

SCB11 型 6~10kV 环氧树脂浇注干式配电变压器
Epoxy resin cast dry-type distribution transformers

▁ 型号含义 /model meaning

SC (B) 11 - XXXX / **

额定高压电压 ( 按额定值填入 )
Rated high voltage voltage (filled in according to the rated value)
额定容量 (kVA)
Rated capacity (kVA)
性能水平代号
Performance level code
低压“箔”式线圈
Low voltage foil coil
三相固体成型（环氧浇注）
Three-phase solid forming (epoxy pouring)

▁ 产品标准 /product standards

GB/T 10228-2008 GB1094.11-2007 GB1094.11-2007 GB/T 10228-10228
额定高压：10(10.5,11, 6,6.3, 6.6)kV Rated high voltage: 10(10.5,11, 6,6.3, 6.6)kV
Rated low voltage: 0.4kv
额定低压：0.4kV
Tapping range: no excitation voltage regulation (+ / - 5%, + / - 2 * 2.5%)/
分接范围：无励磁调压 (±5%,±2×2.5％ )/ 有载调压 (±4x2.5%) on-load voltage regulation (+ / - 4x2.5%)
联结组别：D yn11or Y yn0 Link group: D yn11or Y yn0
Insulation level: LI75AC35/AC5
绝缘水平：LI75AC35/AC5

电压组合及分接范围 /Voltage combination and
额定容量 (kVA) tapping range 联结组标号 空载损耗（W） 负载损耗 (W) 空载电流 (%) 短路阻抗 (%)
Rated capacity 高压 (kV) 高压分接范围 (％ ) 低压（kV） Join group No-load loss Load loss No-load Short circuit
impedance
(kVA) High voltage High pressure Low pressure label (W) (W) current (%) (%)
(kV) tapping range (%) (kV)
30 170 710 2.6 4
50 240 1000 2.2 4
80 330 1380 2.2 4
100 360 1570 2 4
125 420 1850 1.8 4
160 490 2130 1.8 4
200 560 2530 1.6 4
250 650 2760 1.6 4
6
315 6.6 790 3470 1.4 4
6.6 ±5%
400 0.4 Dyn11 880 3990 1.4 4
10 ±2×2.5%
500 10.5 1045 4880 1.4 4
630 11 1210 5880 1.2 4
630 1170 5960 1.2 6
35
800 1370 6960 1.2 6
/
1000 1590 8130 1.1 6 36
1250 1880 9690 1.1 6
1600 2205 11730 1.1 6
2000 2745 14450 1.0 6 WWW.JIUKO.COM.CN
2500 3240 17170 1.0 6
注：1、表中斜线上方的负载损耗适用于 Dyn11 联接组，斜线下方的负载损耗值适用于 Yyn0 联接组。 2、其它容量的产品性能参数，由用户与制造厂协商确定。
Note: 1. The load loss above the diagonal line in the table is applicable to Dyn11 join group, and the load loss value below the diagonal line is applicable to Yyn0 join
group. 2. Performance parameters of other capacity products shall be determined by the user through consultation with the manufacturer.
