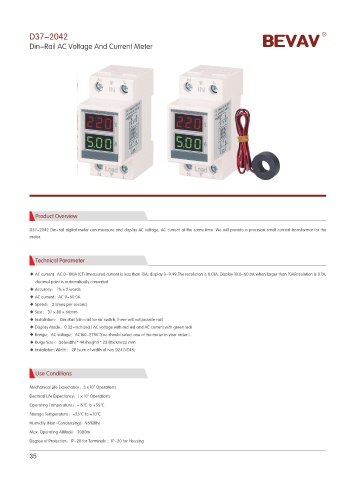

D37-2042
           Din-Rail AC Voltage And Current Meter



































             Product Overview

           D37-2042 Din-rail digital meter can measure and display AC voltage, AC current at the same time. We will provide a precision small current transformer for the
           meter.



             Technical Parameter

           ◆ AC current： AC 0-100A (CT) (measured current is less than 10A, display 0-9.99,The resolution is 0.01A. Display 10.0-60.0A when larger than 10AResolution is 0.1A,
             decimal point is automatically converted
           ◆ Accuracy： 1%±2 words
           ◆ AC current：AC 0-60.0A
           ◆ Speed： 2 times per second;
           ◆ Size： 37×80×66mm
           ◆ Installation： Din-Rail (din-rail for air switch, there will not provide rail)
           ◆ Display Mode：0.32-inch Led ( AC voltage with red led and AC current with green led)
           ◆ Range：AC voltage：AC160-275V (You should select one of the meter in your order ).
           ◆ Bulge Size： 36(width) * 44 (height) * 23 (thickness) mm
           ◆ Installation Width： 2P (sum of width of two DZ47/C45)



             Use Conditions
                                 6
           Mechanical Life Expectancy：3 x 10  Operations
                               5
           Electrical Life Expectancy：1 x 10  Operations
           Operating Temperature：-15℃ to +55℃
           Storage Temperature：-25℃ to +70℃
           Humidity (Non-Condensing)：95%(Rh)
           Max. Operating Altitude：2000m
           Degree of Protection：IP-20 for Terminals ；IP-30 for Housing
