P. 38

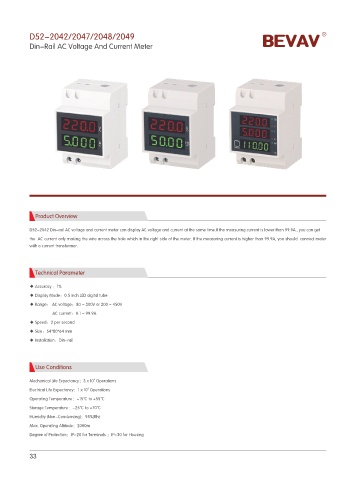

D52-2042/2047/2048/2049
           Din-Rail AC Voltage And Current Meter



































             Product Overview

           D52-2042 Din-rail AC voltage and current meter can display AC voltage and current at the same time.If the measuring current is lower than 99.9A , you can get
           the  AC current only making the wire across the hole which in the right side of the meter. If the measuring current is higher than 99.9A, you should  connect meter
           with a current transformer.




             Technical Parameter

           ◆ Accuracy ：1%
           ◆ Display Mode：0.5 inch LED digital tube
           ◆ Range： AC voltage：80 - 300V or 200 - 450V
                                AC current：0.1 - 99.9A
           ◆ Speed：2 per second
           ◆ Size：54*80*64 mm
           ◆ Installation：Din-rail



             Use Conditions

                                 6
           Mechanical Life Expectancy：3 x 10  Operations
                               5
           Electrical Life Expectancy：1 x 10  Operations
           Operating Temperature：-15℃ to +55℃
           Storage Temperature：-25℃ to +70℃
           Humidity (Non-Condensing)：95%(Rh)
           Max. Operating Altitude：2000m
           Degree of Protection：IP-20 for Terminals ；IP-30 for Housing
