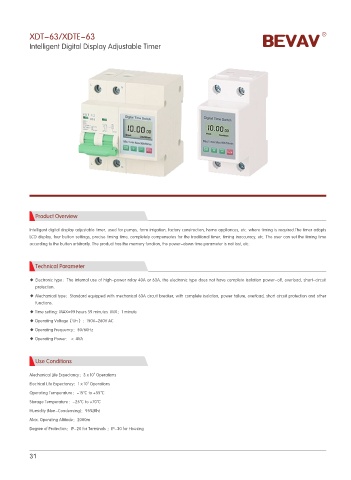

XDT-63/XDTE-63
           Intelligent Digital Display Adjustable Timer



































             Product Overview

           Intelligent digital display adjustable timer, used for pumps, farm irrigation, factory construction, home appliances, etc. where timing is required.The timer adopts
           LCD display, four button settings, precise timing time, completely compensates for the traditional timer, timing inaccuracy, etc. The user can set the timing time
           according to the button arbitrarily. The product has the memory function, the power-down time parameter is not lost, etc.


             Technical Parameter


           ◆ Electronic type：The internal use of high-power relay 40A or 63A, the electronic type does not have complete isolation power-off, overload, short-circuit
             protection.
           ◆ Mechanical type：Standard equipped with mechanical 63A circuit breaker, with complete isolation, power failure, overload, short circuit protection and other
             functions.
           ◆ Time setting: MAX=99 hours 59 minutes  MIX：1 minute
           ◆ Operating Voltage（Un）：150V-260V AC
           ◆ Operating Frequency：50/60Hz
           ◆ Operating Power：＜ 4VA



             Use Conditions

                                 6
           Mechanical Life Expectancy：3 x 10  Operations
                               5
           Electrical Life Expectancy：1 x 10  Operations
           Operating Temperature：-15℃ to +55℃
           Storage Temperature：-25℃ to +70℃
           Humidity (Non-Condensing)：95%(Rh)
           Max. Operating Altitude：2000m
           Degree of Protection：IP-20 for Terminals ；IP-30 for Housing
