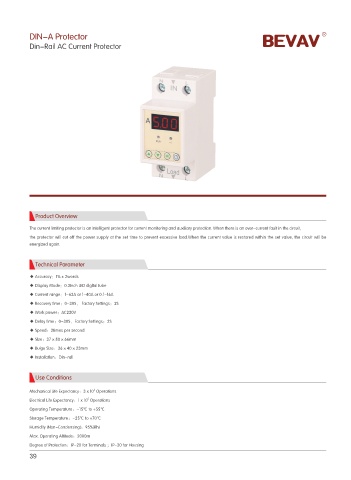

DIN-A Protector
           Din-Rail AC Current Protector



































             Product Overview
           The current limiting protector is an intelligent protector for current monitoring and auxiliary protection. When there is an over-current fault in the circuit,
           the protector will cut off the power supply at the set time to prevent excessive load.When the current value is restored within the set value, the circuit will be
           energized again.


             Technical Parameter

           ◆ Accuracy：1%±2words
           ◆ Dlsplay Mode：0.3Inch LED dlgltal tube
           ◆ Current range：1-63A or 1-40A or 0.1-16A
           ◆ Recovery tlme：0-30S， Factory Settings：2S
           ◆ Work power：AC220V
           ◆ Delay tlme：0-30S，Factory Settings：2S
           ◆ Speed：2times per second
           ◆ Slze：37×80×66mm
           ◆ Bulge Slze：36×40×23mm
           ◆ Installatlon：Dln-rall


             Use Conditions

                                 6
           Mechanical Life Expectancy：3 x 10  Operations
                               5
           Electrical Life Expectancy：1 x 10  Operations
           Operating Temperature：-15℃ to +55℃
           Storage Temperature：-25℃ to +70℃
           Humidity (Non-Condensing)：95%(Rh)
           Max. Operating Altitude：2000m
           Degree of Protection：IP-20 for Terminals ；IP-30 for Housing
