P. 35

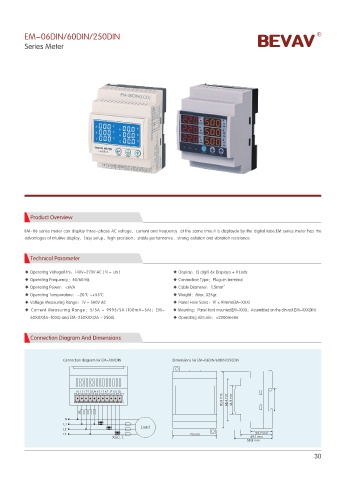

EM-06DIN/60DIN/250DIN
Series Meter
Product Overview
EM-06 series meter can display three-phase AC voltage，current and frequency at the same time.it is displayde by the digital tube.EM series meter has the
advantages of intuitive display、Easy setup、high procision、stable performance，strong isolation and vibration resistance.
Technical Parameter
◆ Operating Voltage(Un)：140V-270V AC { N - Un } ◆ Display：(3 digit) 6x Displays + 9 Leds
◆ Operating Frequency：50/60 Hz. ◆ Connection Type：Plug-in terminal
◆ Operating Power：<6VA ◆ Cable Diameter：1,5mm 2
◆ Operating Temperature：-20℃ ~+55℃ ◆ Weight：Max. 325gr.
◆ Voltage Measuring Range：1V - 500V AC ◆ Panel Hole Sizes：91×91mm(EM-XXX)
◆ Current Measuring Range：5/5A - 9995/5A (100mA-5A)；EM- ◆ Mounting：Panel front mounted(EM-XXX)；Assembled on the din rail.(EM-XXXDIN)
60XXX(1A-100A) and EM-250XXX(2A - 250A) ◆ Operating Altitude：<2000meter
Connection Diagram And Dimensions
Connection diagram for EM-XXXDIN Dimensions for EM-06DIN/60DIN/250DIN
/ - - - 6O L * L * L *
NN NN NN
"
/
-
- -PBE
- NN NN
9 $ 5 NN
NN
30
