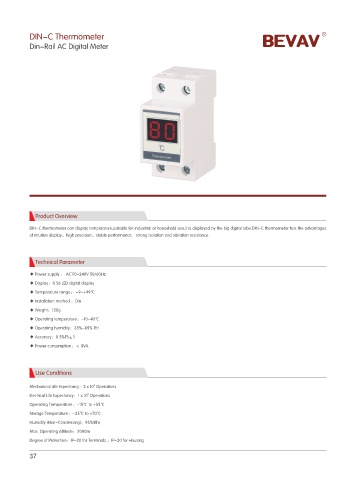

DIN-C Thermometer
           Din-Rail AC Digital Meter



































             Product Overview
           DIN-C thermometer can display temperature,suitable for industrial or household use,it is displayed by the big digital tube.DIN-C thermometer has the advantages
           of intuitive display、high procision、stable performance，strong isolation and vibration resistance.




             Technical Parameter
           ◆ Power supply ： AC110~240V 50/60Hz
           ◆ Display：0.56 LED digital display
           ◆ Temperature range： -9~+99℃
           ◆ Installation method ：Din
           ◆ Weight：120g
           ◆ Operating temperature：-10~40℃
           ◆ Operating humidity：35%~85% RH
           ◆ Accuracy：0.5%FS±1
           ◆ Power consumption：＜ 8VA



             Use Conditions

                                 6
           Mechanical Life Expectancy：3 x 10  Operations
                               5
           Electrical Life Expectancy：1 x 10  Operations
           Operating Temperature：-15℃ to +55℃
           Storage Temperature：-25℃ to +70℃
           Humidity (Non-Condensing)：95%(Rh)
           Max. Operating Altitude：2000m
           Degree of Protection：IP-20 for Terminals ；IP-30 for Housing
