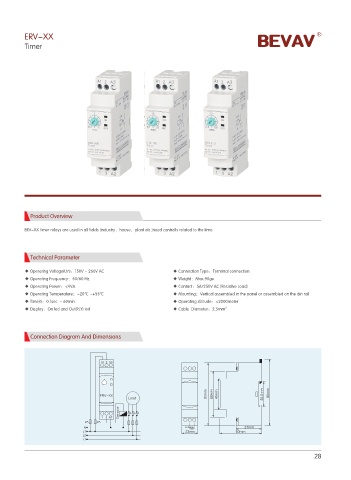

ERV-XX
Timer
Product Overview
ERV-XX timer relays are used in all fields (industry，house，plant etc.)need controlls related to the time.
Technical Parameter
◆ Operating Voltage(Un)：150V - 260V AC ◆ Connection Type：Terminal connection
◆ Operating Frequency：50/60 Hz. ◆ Weight：Max.90ge.
◆ Operating Power：<4VA ◆ Contact：5A/250V AC (Resistive Load)
◆ Operating Temperature：-20℃ ~+55℃ ◆ Mounting：Vertical assembled in the panel or assembled on the din rail
◆ Time(t)：0.1sec. - 60min. ◆ Operating Altitude：<2000meter
◆ Display：On led and Out(RLY) led ◆ Cable Diameter：2,5mm 2
Connection Diagram And Dimensions
" "
&37 99 NN NN NN NN NN
-PBE
$POUBDUPS
"
" "
/ NN NN
- NN NN
-
-
