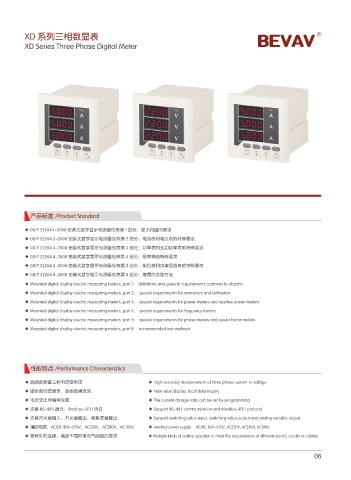

XD 系列三相数显表
XD Series Three Phase Digital Meter

产品标准 /Product Standard

◆ GB/T 22264.1-2008 安装式数字显示电测量仪表第 1 部分：定义和通用要求
◆ GB/T 22264.2-2008 安装式数字显示电测量仪表第 2 部分：电流表和电压表的特殊要求
◆ GB/T 22264.3-2008 安装式数字显示电测量仪表第 3 部分：功率表和无功功率表的特殊要求
◆ GB/T 22264.4-2008 安装式数字显示电测量仪表第 4 部分：频率表的特殊要求
◆ GB/T 22264.5-2008 安装式数字显示电测量仪表第 5 部分：相位表和功率因数表的特殊要求
◆ GB/T 22264.8-2008 安装式数字显示电测量仪表第 8 部分：推荐的实验方法
◆ Mounted digital display electric measuring meters, part 1： definitions and general requirements common to all parts
◆ Mounted digital display electric measuring meters, part 2： special requirements for ammeters and voltmeters
◆ Mounted digital display electric measuring meters, part 3： special requirements for power meters and reactive power meters
◆ Mounted digital display electric measuring meters, part 4： special requirements for frequency meters
◆ Mounted digital display electric measuring meters, part 5： special requirements for phase meters and power factor meters
◆ Mounted digital display electric measuring meters, part 8： recommended test methods

性能特点 /Performance Characteristics

◆ 高精度测量三相电流或电压 ◆ High accuracy measurement of three phase current or voltage
◆ 提供数码管显示，本地数据查询 ◆ Nixie tube display, local data inquiry
◆ 电流变比可编程设置 ◆ The current change ratio can be set by programming
◆ 支持 RS-485 通讯，Modbus-RTU 协议 ◆ Support RS-485 communication and Modbus-RTU protocol
◆ 支持开关量输入、开关量输出、模拟变量输出 ◆ Support switching value input, switching value output and analog variable output
◆ 辅助电源：AC/DC 80V~270V、AC220V、AC380V、AC100V ◆ Auxiliary power supply： AC/DC 80V~270V, AC220V, AC380V, AC100V
◆ 多种外形选择，满足不同柜体电气回路的要求 ◆ Multiple kinds of outline selection to meet the requirements of different electric circuits of cabinet

06
