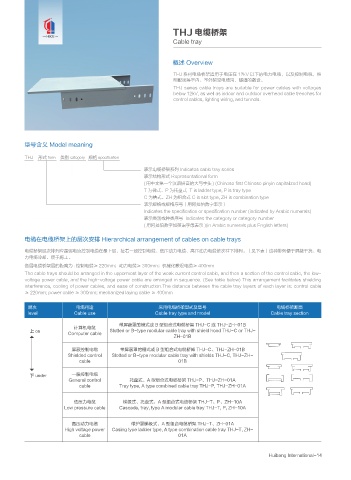

THJ 电缆桥架
HBCE
Cable tray

概述 Overview
THJ 系列电缆桥架适用于电压在 12kV 以下的电力电缆，以及控制电缆，照
明配线等室内、室外架空电缆沟，隧道的敷设。
THJ series cable trays are suitable for power cables with voltages
below 12kV, as well as indoor and outdoor overhead cable trenches for
control cables, lighting wiring, and tunnels.

型号含义 Model meaning

THJ 形式 form 类别 category 规格 specification

表示电缆桥架系列 Indicates cable tray series
表示结构形式 Representational form
( 用中文第一个汉语拼音的大写字头 ) (Chinese first Chinese pinyin capitalized head)
T 为梯式、P 为托盘式 T is ladder type, P is tray type
C 为槽式、ZH 为组合式 C is slot type, ZH is combination type
表示规格或规格序号（用阿拉伯数字表示）
Indicates the specification or specification number (indicated by Arabic numerals)
表示类别或种类序号 Indicates the category or category number
( 用阿拉伯数字加英语字母表示 )(in Arabic numerals plus English letters)

电缆在电缆桥架上的层次安排 Hierarchical arrangement of cables on cable trays
电缆桥架层次排列应是弱电流控制电缆在最上层，接着一段控制电缆、低压动力电缆、高压动力电缆依次往下排列。（见下表）这种排列便于屏蔽干扰、电
力电缆冷却、便于施工。
各层电缆桥架层的距离为 : 控制电缆≥ 220mm；动力电缆≥ 300mm；机械化敷设电缆≥ 400mm
The cable trays should be arranged in the uppermost layer of the weak current control cable, and then a section of the control cable, the low-
voltage power cable, and the high-voltage power cable are arranged in sequence. (See table below) This arrangement facilitates shielding
interference, cooling of power cables, and ease of construction.The distance between the cable tray layers of each layer is: control cable
≥ 220mm; power cable ≥ 300mm; mechanized laying cable ≥ 400mm

层次 电缆用途 采用电缆桥架型式及型号 电缆桥架断面
level Cable use Cable tray type and model Cable tray section
带屏蔽罩的槽式或 B 型组合式电缆桥架 THJ-C 或 THJ-ZH-01B
计算机电缆
上 on Slotted or B-type modular cable tray with shield hood THJ-C or THJ-
Computer cable
ZH-01B
屏蔽控制电缆 带屏蔽罩的槽式或 B 型组合式电缆桥架 THJ-C、THJ-ZH-01B
Shielded control Slotted or B-type modular cable tray with shields THJ-C, THJ-ZH-
cable 01B

下 under 一般控制电缆
General control 托盘式、A 型组合式电缆桥架 THJ-P、THJ-ZH-01A
cable Tray type, A type combined cable tray THJ-P, THJ-ZH-01A

低压力电缆 梯级式、托盘式、A 型组合式电缆桥架 THJ-T、P、ZH-10A
Low pressure cable Cascade, tray, type A modular cable tray THJ-T, P, ZH-10A

高压动力电缆 带护罩梯级式、A 型组合电缆桥架 THJ-T、ZH-01A
High voltage power Casing type ladder type, A type combination cable tray THJ-T, ZH-
cable 01A
