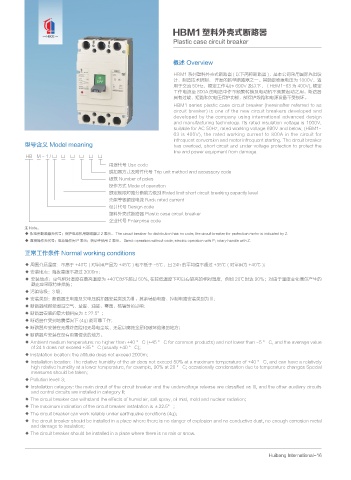

HBM1 塑料外壳式断路器
HBCE
Plastic case circuit breaker

概述 Overview
HBM1 系列塑料外壳式断路器 ( 以下简称断路器 )，是本公司采用国际先进设
计、制造技术研制、 开发的新型断路器之一。其额定绝缘电压为 1000V，适
用于交流 50Hz，额定工作电压 690V 及以下，（HBM1-63 为 400V), 额定
工作电流至 800A 的电路中作不频繁转换及电动机不频繁起动之用。断路器
具有过载、短路和欠电压保护功能，能保护线路和电源设备不受损坏。
HBM1 series plastic case circuit breaker (hereinafter referred to as
circuit breaker) is one of the new circuit breakers developed and
developed by the company using international advanced design
and manufacturing technology. Its rated insulation voltage is 1000V,
suitable for AC 50Hz, rated working voltage 690V and below, (HBM1-
63 is 400V), the rated working current to 800A in the circuit for
infrequent conversion and motor infrequent starting. The circuit breaker
型号含义 Model meaning has overload, short circuit and under voltage protection to protect the
line and power equipment from damage.
HB M - 1 / □ □ □ □ □ □
用途代号 Use code
脱扣器方式及附件代号 Trip unit method and accessory code
极数 Number of poles
操作方式 Mode of operation
额定极限短路分断能力级别 Rated limit short circuit breaking capacity level
壳架等极额定电流 Rack rated current
设计代号 Design code
塑料外壳式断路器 Plastic case circuit breaker
企业代号 Enterprise code
注 Note：
◆ 配电用断路器无代号；保护电动机用断路器以 2 表示。 The circuit breaker for distribution has no code; the circuit breaker for protection motor is indicated by 2.
◆ 直接操作无代号；电动操作用 P 表示；转动手柄用 Z 表示。 Direct operation without code; electric operation with P; rotary handle with Z.

正常工作条件 Normal working conditions
◆ 周围介质温度：不高于 +40℃ ( 对常用产品为 +45℃ ) 和不低于 -5℃，且 24h 的平均值不超过 +35℃ ( 对常用为 +40℃ )；
◆ 安装地点：海拔高度不超过 2000m；
◆ 安装地点：空气相对湿度在最高温度为 +40℃时不超过 50%, 在较低温度下可以有较高的相对湿度，例如 20℃时达 90%；对由于温度变化偶尔产生的
凝露应采取特殊措施；
◆ 污染等级：3 级；
◆ 安装类别：断路器主电路及欠电压脱扣器安装类别为Ⅲ，其余辅助电路、控制电路安装类别为Ⅱ；
◆ 断路器能耐受潮湿空气、盐雾、油雾、霉菌、核辐射的影响；
◆ 断路器安装的最大倾斜度为 ±22.5°；
◆ 断路器在受到地震情况下 (4g) 能可靠工作；
◆ 断路器应安装在无爆炸危险和无导电尘埃、无足以腐蚀金属和破坏绝缘的地方；
◆ 断路器应安装在没有雨雪侵袭的地方。
◆ Ambient medium temperature: no higher than +40 ° C (+45 ° C for common products) and not lower than -5 ° C, and the average value
of 24 h does not exceed +35 ° C (usually +40 ° C);
◆ Installation location: the altitude does not exceed 2000m;
◆ Installation location: The relative humidity of the air does not exceed 50% at a maximum temperature of +40 ° C, and can have a relatively
high relative humidity at a lower temperature, for example, 90% at 20 ° C; occasionally condensation due to temperature changes Special
measures should be taken;
◆ Pollution level: 3;
◆ Installation category: the main circuit of the circuit breaker and the undervoltage release are classified as III, and the other auxiliary circuits
and control circuits are installed in category II;
◆ The circuit breaker can withstand the effects of humid air, salt spray, oil mist, mold and nuclear radiation;
◆ The maximum inclination of the circuit breaker installation is ±22.5° ;
◆ The circuit breaker can work reliably under earthquake conditions (4g);
◆ The circuit breaker should be installed in a place where there is no danger of explosion and no conductive dust, no enough corrosion metal
and damage to insulation;
◆ The circuit breaker should be installed in a place where there is no rain or snow.
