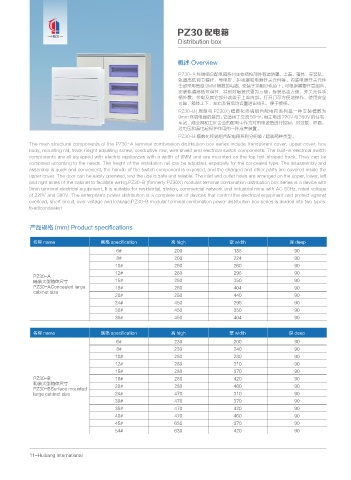

Page 18 - 徽邦国际电气有限公司

PZ30 配电箱
HBCE
Distribution box

概述 Overview
PZ30-A 终端组合配电箱系列主要结构部件有透明罩、上盖、箱体、安装轨、
轨道高低调节螺杆、导电排、护线罩和电器开关元件等。内装电器开关元件
全部采用宽度 9MM 模数的电器，安装于顶帽形轨道上，可根据需要任意组合，
安装轨道高低可调节，特别对暗装式更为方便。拆装迅速方便、开关元件手
柄外露，带电及其它部分遮盖于上盖内部，打开门可方便地操作，使用安全
可靠，箱体上下、左右及背后均设置进出线孔，便于接线。
PZ30-B( 原型号 PZ30X) 模数化终端组合配电箱系列是一种安装模数为
9mm 终端电器的装置，它适用于交流 50Hz，额定电压 220V 与 380V 的住宅、
车站、商业网和工矿企业的配电中作为对用电设备进行控制，对过载、短路、
过电压和漏电起保护作用的一种成套装置。
PZ30-B 模数化终端组合配电箱系列分明装 / 暗装两种类型。
The main structural components of the PZ30-A terminal combination distribution box series include transparent cover, upper cover, box
body, mounting rail, track height adjusting screw, conductive row, wire shield and electrical switch components. The built-in electrical switch
components are all equipped with electric appliances with a width of 9MM and are mounted on the top hat-shaped track. They can be
combined according to the needs. The height of the installation rail can be adjusted, especially for the concealed type. The disassembly and
assembly is quick and convenient, the handle of the switch component is exposed, and the charged and other parts are covered inside the
upper cover. The door can be easily operated, and the use is safe and reliable. The inlet and outlet holes are arranged on the upper, lower, left
and right sides of the cabinet to facilitate wiring.PZ30-B (formerly PZ30X) modular terminal combination distribution box series is a device with
9mm terminal electrical equipment. It is suitable for residential, station, commercial network and industrial mine with AC 50Hz, rated voltage
of 220V and 380V. The enterprise's power distribution is a complete set of devices that control the electrical equipment and protect against
overload, short circuit, over voltage and leakage.PZ30-B modular terminal combination power distribution box series is divided into two types:
fixed/concealed.

产品规格 (mm) Product specifications

名称 name 规格 specification 高 high 宽 width 深 deep
6# 200 188 90
8# 200 224 90
10# 260 260 90
12# 260 296 90
PZ30-A
暗装大型箱体尺寸 15# 260 350 90
PZ30-AConcealed large 18# 260 404 90
cabinet size
20# 260 440 90
24# 450 296 90
30# 450 350 90
36# 450 404 90

名称 name 规格 specification 高 high 宽 width 深 deep
6# 230 200 90
8# 230 240 90
10# 280 280 90
12# 280 310 90
15# 280 370 90
PZ30-B 18# 280 420 90
明装大型箱体尺寸 20# 280 460 90
PZ30-BSurface mounted
large cabinet size 24# 470 310 90
30# 470 370 90
36# 470 420 90
40# 470 460 90
45# 630 370 90
54# 630 420 90
