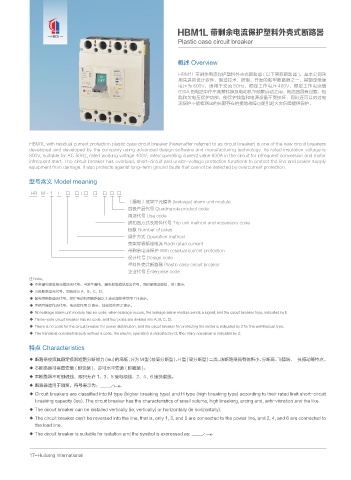

HBM1L 带剩余电流保护塑料外壳式断路器
HBCE
Plastic case circuit breaker

概述 Overview
HBM1L 带剩余电流保护塑料外壳式断路器 ( 以下简称断路器 )，是本公司采
用先进的设计软件、制造技术，研制、开发的新型断路器之一。其额定绝缘
电压为 800V，适用于交流 50Hz，额定工作电压 400V，额定工作电流值
630A 的电路中作不频繁转换及电动机不频繁启动之用。断路器具有过载、短
路和欠电压保护功能，能保护线路和电源设备不受损坏，同时还可以对过电
流保护不能检测出的长期存在的接地故障可能引起火灾危险提供保护。

HBM1L with residual current protection plastic case circuit breaker (hereinafter referred to as circuit breaker) is one of the new circuit breakers
developed and developed by the company using advanced design software and manufacturing technology. Its rated insulation voltage is
800V, suitable for AC 50Hz, rated working voltage 400V, rated operating current value 630A in the circuit for infrequent conversion and motor
infrequent start. The circuit breaker has overload, short-circuit and under-voltage protection functions to protect the line and power supply
equipment from damage. It also protects against long-term ground faults that cannot be detected by overcurrent protection.

型号含义 Model meaning

HB M - 1 L □ □ / □ □ □ □ □
（漏电）报警单元模块 (leakage) alarm unit module
四极产品代号 Quadrupole product code
用途代号 Use code
脱扣器方式及附件代号 Trip unit method and accessory code
极数 Number of poles
操作方式 Operation method
壳架等极额定电流 Rack rated current
带剩余电流保护 With residual current protection
设计代号 Design code
塑料外壳式断路器 Plastic case circuit breaker
企业代号 Enterprise code
注 Note：
◆ 不带漏电报警单元模块无代号；当发生漏电，漏电报警模块发出信号，同时断路器脱扣，用 I 表示；
◆ 三极断路器无代号，四极时分 A，B，C，D；
◆ 配电用断路器无代号，保护电动机用断路器以 2 表示湿热带型用 TH 表示。
◆ 手柄直接操作无代号：电动操作用 D 表示；转动操作用 Z 表示。
◆ No leakage alarm unit module has no code; when leakage occurs, the leakage alarm module sends a signal, and the circuit breaker trips, indicated by I;
◆ Three-pole circuit breaker has no code, and four poles are divided into A, B, C, D;
◆ There is no code for the circuit breaker for power distribution, and the circuit breaker for protecting the motor is indicated by 2 for the wet tropical type.
◆ The handle is operated directly without a code: the electric operation is indicated by D; the rotary operation is indicated by Z.

特点 Characteristics

◆ 断路器按照其额定极限短路分断能力(leu)的高低，分为M型(较高分断型)、H型(高分断型)二类。该断路器具有体积小、分断高、飞弧端， 抗振动等特点。
◆ 本断路器可垂直安装 ( 即竖装 )，亦可水平安装 ( 即横装 )。
◆ 本断路器不可倒进线，即只允许 1、3、5 接电源线，2、4、6 接负载线。
◆ 断路器适用于隔离，符号表示为：
◆ Circuit breakers are classified into M type (higher breaking type) and H type (high breaking type) according to their rated limit short-circuit
breaking capacity (leu). The circuit breaker has the characteristics of small volume, high breaking, arcing end, anti-vibration and the like.
◆ The circuit breaker can be installed vertically (ie, vertically) or horizontally (ie horizontally).
◆ The circuit breaker can't be reversed into the line, that is, only 1, 3, and 5 are connected to the power line, and 2, 4, and 6 are connected to
the load line.
◆ The circuit breaker is suitable for isolation and the symbol is expressed as:
