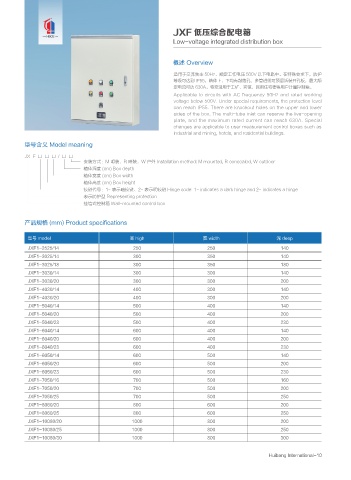

JXF 低压综合配电箱
HBCE
Low-voltage integrated distribution box

概述 Overview
适用于交流频率 50Hz、额定工作电压 500V 以下电路中。在特殊要求下，防护
等级可达到 IP55，箱体上、下均有敲落孔，多管进线可预留活装开孔板，最大额
定电流可达 630A。特变适用于工矿、宾馆、民用住宅楼等用户计量控制箱。
Applicable to circuits with AC frequency 50Hz and rated working
voltage below 500V. Under special requirements, the protection level
can reach IP55. There are knockout holes on the upper and lower
sides of the box. The multi-tube inlet can reserve the live-opening
plate, and the maximum rated current can reach 630A. Special
changes are applicable to user measurement control boxes such as
industrial and mining, hotels, and residential buildings.
型号含义 Model meaning

JX F □ □ □ / □ □
安装方式：M 明装，R 暗装，W 户外 Installation method: M mounted, R concealed, W outdoor
箱体深度 (cm) Box depth
箱体宽度 (cm) Box width
箱体高度 (cm) Box height
铰链代号：1- 表示暗铰链、2- 表示明铰链 Hinge code: 1- indicates a dark hinge and 2- indicates a hinge
表示防护型 Representing protection
挂墙式控制箱 Wall-mounted control box

产品规格 (mm) Product specifications

型号 model 高 high 宽 width 深 deep
JXF1-2525/14 250 250 140
JXF1-3025/14 300 350 140
JXF1-3025/18 300 350 180
JXF1-3030/14 300 300 140
JXF1-3030/20 300 300 200
JXF1-4030/14 400 300 140
JXF1-4030/20 400 300 200
JXF1-5040/14 500 400 140
JXF1-5040/20 500 400 200
JXF1-5040/23 500 400 230
JXF1-6040/14 600 400 140
JXF1-6040/20 600 400 200
JXF1-6040/23 600 400 230
JXF1-6050/14 600 500 140
JXF1-6050/20 600 500 200
JXF1-6050/23 600 500 230
JXF1-7050/16 700 500 160
JXF1-7050/20 700 500 200
JXF1-7050/25 700 500 250
JXF1-8060/20 800 600 200
JXF1-8060/25 800 600 250
JXF1-10080/20 1000 800 200
JXF1-10080/25 1000 800 250
JXF1-10080/30 1000 800 300
