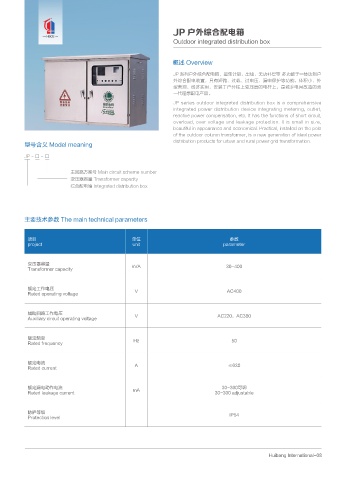

JP 户外综合配电箱
HBCE
Outdoor integrated distribution box

概述 Overview
JP 系列户外综合配电箱，是集计量、出线、无功补偿等 多功能于一体达到户
外综合配电装置，具有短路、过载、过电压、漏电保护等功能，体积小、外
型美观、经济实用，安装于户外柱上变压器的电杆上，是城乡电网改造的新
一代理想配电产品。
JP series outdoor integrated distribution box is a comprehensive
integrated power distribution device integrating metering, outlet,
reactive power compensation, etc. It has the functions of short circuit,
overload, over voltage and leakage protection. It is small in size,
beautiful in appearance and economical. Practical, installed on the pole
of the outdoor column transformer, is a new generation of ideal power
distribution products for urban and rural power grid transformation.
型号含义 Model meaning
JP - □ - □

主回路方案号 Main circuit scheme number
变压器容量 Transformer capacity
综合配电箱 Integrated distribution box

主要技术参数 The main technical parameters

项目 单位 参数
project unit parameter

变压器容量 kVA 30-400
Transformer capacity

额定工作电压 V AC400
Rated operating voltage

辅助回路工作电压
Auxiliary circuit operating voltage V AC220，AC380

额定频率 Hz 50
Rated frequency

额定电流
Rated current A ≤630

额定漏电动作电流 mA 30~300可调
Rated leakage current 30~300 adjustable

防护等级
Protection level IP54
