HEH 和航电气 尼龙电缆防水接头
HEHANG ELECTRIC
Nylon Cable Waterproof Connector

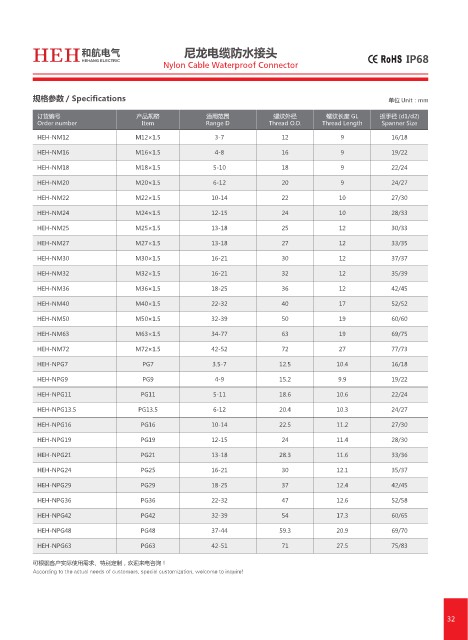

规格参数 / Specifications 单位 Unit：mm

订货编号 产品规格 适用范围 螺纹外径 螺纹长度 GL 扳手径 (d1/d2)
Order number Item Range D Thread O.D. Thread Length Spanner Size

HEH-NM12 M12×1.5 3-7 12 9 16/18
HEH-NM16 M16×1.5 4-8 16 9 19/22
HEH-NM18 M18×1.5 5-10 18 9 22/24

HEH-NM20 M20×1.5 6-12 20 9 24/27
HEH-NM22 M22×1.5 10-14 22 10 27/30

HEH-NM24 M24×1.5 12-15 24 10 28/33
HEH-NM25 M25×1.5 13-18 25 12 30/33
HEH-NM27 M27×1.5 13-18 27 12 33/35

HEH-NM30 M30×1.5 16-21 30 12 37/37
HEH-NM32 M32×1.5 16-21 32 12 35/39

HEH-NM36 M36×1.5 18-25 36 12 42/45
HEH-NM40 M40×1.5 22-32 40 17 52/52

HEH-NM50 M50×1.5 32-39 50 19 60/60
HEH-NM63 M63×1.5 34-77 63 19 69/75

HEH-NM72 M72×1.5 42-52 72 27 77/73
HEH-NPG7 PG7 3.5-7 12.5 10.4 16/18
HEH-NPG9 PG9 4-9 15.2 9.9 19/22

HEH-NPG11 PG11 5-11 18.6 10.6 22/24
HEH-NPG13.5 PG13.5 6-12 20.4 10.3 24/27

HEH-NPG16 PG16 10-14 22.5 11.2 27/30
HEH-NPG19 PG19 12-15 24 11.4 28/30

HEH-NPG21 PG21 13-18 28.3 11.6 33/36
HEH-NPG24 PG25 16-21 30 12.1 35/37

HEH-NPG29 PG29 18-25 37 12.4 42/45
HEH-NPG36 PG36 22-32 47 12.6 52/58
HEH-NPG42 PG42 32-39 54 17.3 60/65

HEH-NPG48 PG48 37-44 59.3 20.9 69/70
HEH-NPG63 PG63 42-51 71 27.5 75/83

可根据客户实际使用需求、特别定制，欢迎来电咨询！
According to the actual needs of customers, special customization, welcome to inquire!
