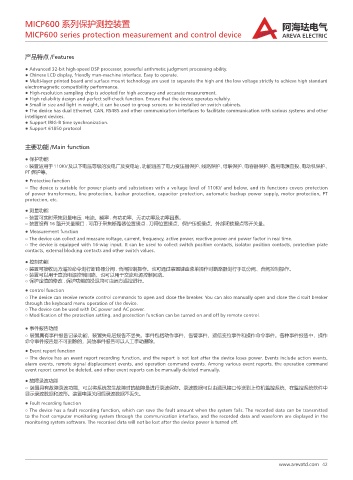

MICP600 系列保护测控装置 ୚ࡢ䚕ࣔࠩ
MICP600 series protection measurement and control device AREVA ELECTRIC

产品特点 /Features

● Advanced 32-bit high-speed DSP processor, powerful arithmetic judgment processing ability.
● Chinese LCD display, friendly man-machine interface. Easy to operate.
● Multi-layer printed board and surface mount technology are used to separate the high and the low voltage strictly to achieve high standard
electromagnetic compatibility performance.
● High-resolution sampling chip is adopted for high accuracy and accurate measurement.
● High reliability design and perfect self-check function. Ensure that the device operates reliably.
● Small in size and light in weight, it can be used to group screens or be installed on switch cabinets.
● The device has dual Ethernet, CAN, RS485 and other communication interfaces to facilitate communication with various systems and other
intelligent devices.
● Support IRIG-B time synchronization.
● Support 61850 protocol

主要功能 /Main function

● 保护功能
○ 装置适用于110KV及以下电压等级的发电厂及变电站，功能涵盖了电力变压器保护、线路保护、母联保护、电容器保护、备用电源自投、电动机保护、
PT 保护等。
● Protective function
○ The device is suitable for power plants and substations with a voltage level of 110KV and below, and its functions covers protection
of power transformers, line protection, busbar protection, capacitor protection, automatic backup power supply, motor protection, PT
protection, etc.

● 测量功能
○ 装置可实时采集测量电压 . 电流、频率 . 有功功率、无功功率及功率因素。
○ 装置设有 16 路开关量接口 . 可用于采集断路器位置接点 . 刀闸位置接点，保护压板接点、外部闭锁接点等开关量。
● Measurement function
○ The device can collect and measure voltage, current, frequency, active power, reactive power and power factor in real time.
○ The device is equipped with 16-way input. It can be used to collect switch position contacts, isolator position contacts, protection plate
contacts, external blocking contacts and other switch values.
● 控制功能
○ 装置可接收远方遥控命令进行断路器分闸 . 合闸控制操作。也可通过装置键盘菜单操作对断路器进行手动分闸、合闸控制操作。
○ 装置可以用于直流电源控制回路，也可以用于交流电源控制回路。
○ 保护定值的修改 . 保护功能的投退均可由远方遥控进行。
● control function
○ The device can receive remote control commands to open and close the breaker. You can also manually open and close the circuit breaker
through the keyboard menu operation of the device.
○ The device can be used with DC power and AC power.
○ Modification of the protection setting. and protection function can be turned on and off by remote control.
● 事件报告功能
○ 装置具有事件报告记录功能，装置失电后报告不丢失。事件包括动作事件、告警事件、遥信变位事件和操作命令事件。各种事件报告中，操作
命令事件报告是不可删除的，其他事件报告可以人工手动删除。
● Event report function
○ The device has an event report recording function, and the report is not lost after the device loses power. Events include action events,
alarm events, remote signal displacement events, and operation command events. Among various event reports, the operation command
event report cannot be deleted, and other event reports can be manually deleted manually.
● 故障录波功能
○ 装置具有故障录波功能，可以将系统发生故障时的故障量进行录波保存。录波数据可以由通讯接口传送到上位机监控系统，在监控系统软件中
显示录波数据和波形。装置电源关闭后录波数据不丢失。
● Fault recording function
○ The device has a fault recording function, which can save the fault amount when the system fails. The recorded data can be transmitted
to the host computer monitoring system through the communication interface, and the recorded data and waveform are displayed in the
monitoring system software. The recorded data will not be lost after the device power is turned off.
