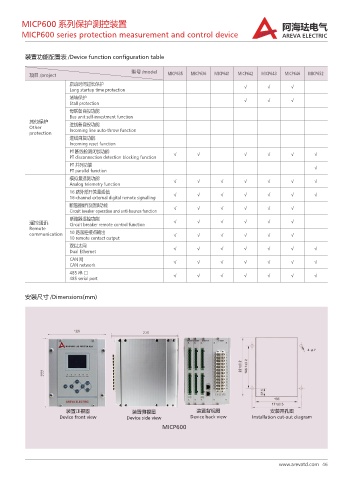

MICP600 系列保护测控装置 ୚ࡢ䚕ࣔࠩ
MICP600 series protection measurement and control device AREVA ELECTRIC

装置功能配置表 /Device function configuration table

型号 /model
项目 /project MICP635 MICP636 MICP641 MICP642 MICP643 MICP646 MICP652
启动时间过长保护 √ √ √
Long startup time protection
堵转保护 √ √ √
Stall protection
母联备自投功能
Bus unit self-investment function
其他保护 进线备自投功能
Other Incoming line auto-throw function
protection
进线自复功能
Incoming reset function
PT 断线检测闭锁功能 √ √ √ √ √ √
PT disconnection detection blocking function
PT 并列功能 √
PT parallel function
模拟量遥测功能 √ √ √ √ √ √ √
Analog telemetry function
16 路外部开关量遥信 √ √ √ √ √ √ √
16-channel external digital remote signalling
断路器操作及防跳功能 √ √ √ √ √ √
Circuit breaker operation and anti-bounce function
断路器遥控功能
遥控通讯 Circuit breaker remote control function √ √ √ √ √ √
Remote
communication 10 路遥控接点输出 √ √ √ √ √ √
10 remote contact output
双以太网 √ √ √ √ √ √ √
Dual Ethernet
CAN 网 √ √ √ √ √ √ √
CAN network
485 串 口 √ √ √ √ √ √ √
485 serial port

安装尺寸 /Dimensions(mm)

装置正视图 装置侧视图 装置背视图 安装开孔图
Device front view Device side view Device back view Installation cut-out diagram
MICP600

www.arevatd.com 46
