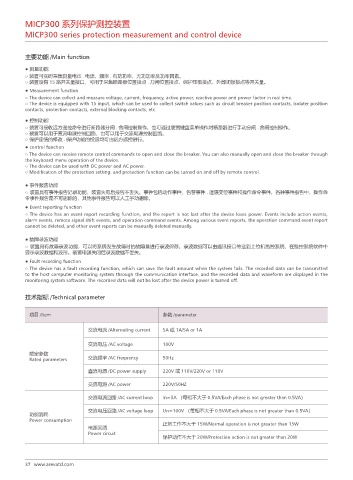

MICP300 系列保护测控装置
MICP300 series protection measurement and control device

主要功能 /Main function

● 测量功能
○ 装置可实时采集测量电压 . 电流、频率 . 有功功率、无功功率及功率因素。
○ 装置设有 15 路开关量接口，可用于采集断路器位置接点 . 刀闸位置接点、保护压板接点、外部闭锁接点等开关量。
● Measurement function
○ The device can collect and measure voltage, current, frequency, active power, reactive power and power factor in real time.
○ The device is equipped with 15 input, which can be used to collect switch values such as circuit breaker position contacts, isolater position
contacts, protection contacts, external blocking contacts, etc.

● 控制功能
○ 装置可接收远方遥控命令进行断路器分闸 . 合闸控制操作。也可通过装置键盘菜单操作对断路器进行手动分闸 . 合闸控制操作。
○ 装置可以用于直流电源控制回路，也可以用于交流电源控制回路。
○ 保护定值的修改 . 保护功能的投退均可由远方遥控进行。
● control function
○ The device can receive remote control commands to open and close the breaker. You can also manually open and close the breaker through
the keyboard menu operation of the device.
○ The device can be used with DC power and AC power.
○ Modification of the protection setting. and protection function can be turned on and off by remote control.
● 事件报告功能
○ 装置具有事件报告记录功能，装置失电后报告不丢失。事件包括动作事件、告警事件 . 遥信变位事件和操作命令事件。各种事件报告中，操作命
令事件报告是不可删除的，其他事件报告可以人工手动删除。
● Event reporting function
○ The device has an event report recording function, and the report is not lost after the device loses power. Events include action events,
alarm events, remote signal shift events, and operation command events. Among various event reports, the operation command event report
cannot be deleted, and other event reports can be manually deleted manually.

● 故障录波功能
○ 装置具有故障录波功能，可以将系统发生故障时的故障量进行录波保存。录波数据可以由通讯接口传送到上位机监控系统，在监控系统软件中
显示录波数据和波形。装置电源关闭后录波数据不丢失。
● Fault recording function
○ The device has a fault recording function, which can save the fault amount when the system fails. The recorded data can be transmitted
to the host computer monitoring system through the communication interface, and the recorded data and waveform are displayed in the
monitoring system software. The recorded data will not be lost after the device power is turned off.

技术指标 /Technical parameter

项目 /Item 参数 /parameter

交流电流 /Alternating current 5A 或 1A/5A or 1A

交流电压 /AC voltage 100V
额定参数
Rated parameters 交流频率 /AC frequency 50Hz

直流电源 /DC power supply 220V 或 110V/220V or 110V
交流电源 /AC power 220V/50HZ

交流电流回路 /AC current loop ln=5A （每相不大于 0.5VA/Each phase is not greater than 0.5VA）

交流电压回路 /AC voltage loop Un=100V （每相不大于 0.5VA/Each phase is not greater than 0.5VA）
功能消耗
Power consumption 正常工作不大于 15W/Normal operation is not greater than 15W
电源回路
Power circuit
保护动作不大于 20W/Protection action is not greater than 20W
