MICP600 系列保护测控装置 ୚ࡢ䚕ࣔࠩ
MICP600 series protection measurement and control device AREVA ELECTRIC

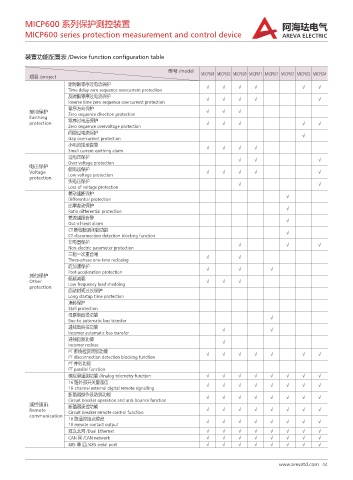

装置功能配置表 /Device function configuration table

型号 /model MICP601 MICP602 MICP603 MICP611 MICP621 MICP631 MICP632 MICP634
项目 /project
定时限零序过电流保护 √ √ √ √ √ √
Time delay zero sequence overcurrent protection
反时限零序过电流保护 √ √ √ √ √
Inverse time zero sequence overcurrent protection
零序方向保护
接地保护 Zero sequence direction protection √ √ √
Earthing
protection 零序过电压保护 √ √ √ √ √
Zero sequence overvoltage protection
间隙过电流保护 √
Gap overcurrent protection
小电流接地告警 √ √ √ √
Small current earthing alarm
过电压保护 √ √ √
Over voltage protection
电压保护 低电压保护
Voltage Low voltage protection √ √ √ √ √
protection
失电压保护 √ √
Loss of voltage protection
差动速断保护 √
Differential protection
比率差动保护 √
Ratio differential protection
差流越限告警 √
Out-of-limit alarm
CT 断线检测闭锁功能 √
CT disconnection detection blocking function
非电量保护 √ √ √
Non-electric parameter protection
三相一次重合闸 √ √
Three-phase one-time reclosing
后加速保护 √ √ √
Post-acceleration protection
其他保护 低频减载
Other Low frequency load shedding √ √ √
protection
启动时间过长保护
Long startup time protection
堵转保护
Stall protection
母联备自投功能 √
Bus-tie automatic bus transfer
进线备自投功能 √ √
Incomer automatic bus transfer
进线自复功能 √
Incomer reclose
PT 断线检测闭锁功能 √ √ √ √ √ √ √
PT disconnection detection blocking function
PT 并列功能
PT parallel function
模拟量遥测功能 /Analog telemetry function √ √ √ √ √ √ √ √
16 路外部开关量遥信 √ √ √ √ √ √ √ √
16-channel external digital remote signalling
断路器操作及防跳功能 √ √ √ √ √ √ √ √
Circuit breaker operation and anti-bounce function
遥控通讯 断路器遥控功能
Remote Circuit breaker remote control function √ √ √ √ √ √ √ √
communication
10 路遥控接点输出 √ √ √ √ √ √ √ √
10 remote contact output
双以太网 /Dual Ethernet √ √ √ √ √ √ √ √
CAN 网 /CAN network √ √ √ √ √ √ √ √
485 串 口 /485 serial port √ √ √ √ √ √ √ √
