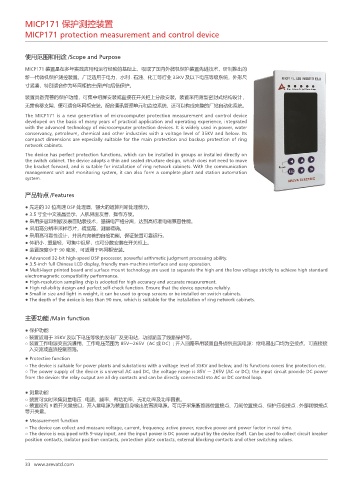

MICP171 保护测控装置
MICP171 protection measurement and control device

使用范围和用途 /Scope and Purpose

MICP171 装置是在多年实践应用和运行经验的基础上，吸取了国内外微机保护装置先进技术，研制推出的
新一代微机保护测控装置。广泛适用于电力、水利 . 石油、化工等行业 35KV 及以下电压等级系统，外形尺
寸紧凑，特别适合作为环网柜的主保护和后备保护。

装置具备完善的保护功能，可集中组屏安装或直接在开关柜上分散安装。装置采用薄型密封式结构设计，
无需前移支架，便可适合环网柜安装。配合通讯管理单元和监控系统，还可以构成完整的厂站自动化系统。
The MICP171 is a new generation of microcomputer protection measurement and control device
developed on the basis of many years of practical application and operating experience, integrated
with the advanced technology of microcomputer protection devices. It is widely used in power, water
conservancy, petroleum, chemical and other industries with a voltage level of 35KV and below. Its
compact dimensions are especially suitable for the main protection and backup protection of ring
network cabinets.
The device has perfect protection functions, which can be installed in groups or installed directly on
the switch cabinet. The device adopts a thin and sealed structure design, which does not need to move
the bracket forward, and is suitable for installation of ring network cabinets. With the communication
management unit and monitoring system, it can also form a complete plant and station automation
system.

产品特点 /Features

● 先进的 32 位高速 DSP 处理器，强大的运算判断处理能力。
● 3.5 寸全中文液晶显示，人机界面友善、操作方便。
● 采用多层印制板及表面贴装技术，强弱电严格分离，达到高标准电磁兼容性能。
● 采用高分辨率采样芯片，精度高，测量精确。
● 采用高可靠性设计，并具有完善的自检功能。保证装置可靠运行。
● 体积小 . 重量轻，可集中组屏，也可分散安装在开关柜上。
● 装置深度小于 90 毫米，可适用于环网柜安装。
● Advanced 32-bit high-speed DSP processor, powerful arithmetic judgment processing ability.
● 3.5-inch full Chinese LCD display, friendly man-machine interface and easy operation.
● Multi-layer printed board and surface mount technology are used to separate the high and the low voltage strictly to achieve high standard
electromagnetic compatibility performance.
● High-resolution sampling chip is adopted for high accuracy and accurate measurement.
● High reliability design and perfect self-check function. Ensure that the device operates reliably.
● Small in size and light in weight, it can be used to group screens or be installed on switch cabinets.
● The depth of the device is less than 90 mm, which is suitable for the installation of ring network cabinets.

主要功能 /Main function

● 保护功能
○ 装置适用于 35KV 及以下电压等级的发电厂及变电站，功能涵盖了线路保护等。
○ 装置工作电源交直流通用，工作电压范围为 85V~265V（AC 或 DC）; 开入回路采用装置自身提供直流电源：继电器出口均为空接点，可直接接
入交流或直流控制回路。
● Protective function
○ The device is suitable for power plants and substations with a voltage level of 35KV and below, and its functions covers line protection etc.
○ The power supply of the device is universal AC and DC, the voltage range is 85V ~ 265V (AC or DC); the input circuit provide DC power
from the device: the relay output are all dry contacts and can be directly connected.Into AC or DC control loop.

● 测量功能
○ 装置可实时采集测量电压 . 电流、频率、有功功率、无功功率及功率因素。
○ 装置设有 9 路开关量接口，开入量电源为装置自身输出的直流电源。可用于采集断路器位置接点、刀闸位置接点、保护压板接点 . 外部闭锁接点
等开关量。
● Measurement function
○ The device can collect and measure voltage, current, frequency, active power, reactive power and power factor in real time.
○ The device is equipped with 9-way input, and the input power is DC power output by the device itself. Can be used to collect circuit breaker
position contacts, isolator position contacts, protection plate contacts, external blocking contacts and other switching values.
