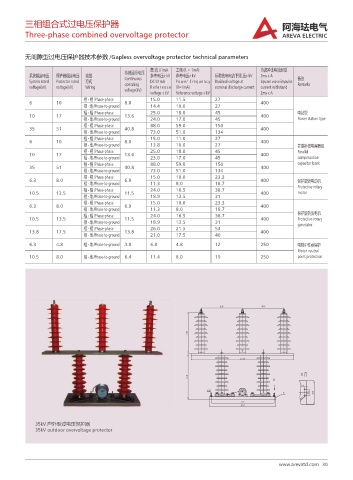

三相组合式过电压保护器                                                                           ୚ࡢ䚕ࣔࠩ
          Three-phase combined overvoltage protector                                            AREVA ELECTRIC



          无间隙型过电压保护器技术参数 /Gapless overvoltage protector technical parameters


                                           持续运行电压   直 流 U1mA  工频 (R = 1mA)               方波冲击电流耐受
           系统额定电压   保护器额定电压   接线           Continuous  参考电压≮ kV  参考电压≮ kV  标称放电电流下残 压≯ kV  2ms ≮ A   备注
           System rated   Protector rated   方式  operating  DC U1mA  Power frequency  Residual voltage at  Square wave impulse  Remarks
           voltage(kV)  voltage(kV)  Wiring         Reference  (R=1mA)    nominal discharge current  current withstand
                                           voltage(kV)
                                                    voltage ≮ kV  Reference voltage ≮ kV  2ms ≮ A
                             相 - 相 /Phase-phase     15.0    11.5          27
           6        10                     8.0                                           400
                             相-地/Phase-to-ground    14.4    10.0          27
                             相 - 相 /Phase-phase     25.0    18.0          45                         电站型
           10       17                     13.6                                          400
                             相-地/Phase-to-ground    24.0    17.0          45                         Power station type
                             相 - 相 /Phase-phase     88.0    59.0          150
           35       51                     40.8                                          400
                             相-地/Phase-to-ground    73.0    51.0          134
                             相 - 相 /Phase-phase     15.0    11.0          27
           6        10                     8.0                                           400
                             相-地/Phase-to-ground    13.8    10.0          27                         并联补偿电容器组
                             相 - 相 /Phase-phase     25.0    18.0          45                         Parallel
           10       17                     13.6                                          400
                             相-地/Phase-to-ground    23.0    17.0          45                         compensation
                             相 - 相 /Phase-phase     88.0    59.0          150                        capacitor bank
           35       51                     40.8                                          400
                             相-地/Phase-to-ground    73.0    51.0          134
                             相 - 相 /Phase-phase     15.0    10.0          23.3
           6.3      8.0                    6.9                                           400         保护旋转电动机
                             相-地/Phase-to-ground    11.3    8.0           18.7                       Protective rotary
                             相 - 相 /Phase-phase     24.0    16.5          38.7
           10.5     13.5                   11.5                                          400         motor
                             相-地/Phase-to-ground    18.9    13.5          31
                             相 - 相 /Phase-phase     15.0    10.0          23.3
           6.3      8.0                    6.9                                           400
                             相-地/Phase-to-ground    11.3    8.0           18.7
                             相 - 相 /Phase-phase     24.0    16.5          38.7                       保护旋转发电机
           10.5     13.5                   11.5                                          400         Protective rotary
                             相-地/Phase-to-ground    18.9    13.5          31                         generator
                             相 - 相 /Phase-phase     26.0    21.5          53
           13.8     17.5                   13.8                                          400
                             相-地/Phase-to-ground    21.0    17.5          40
           6.3      4.8      相-地/Phase-to-ground  3.8  6.8  4.8           12             250         电机中性点保护
                                                                                                     Motor neutral
           10.5     8.0      相-地/Phase-to-ground  6.4  11.4  8.0          19             250         point protection






























             35kV 户外型过电压保护器
             35kV outdoor overvoltage protector
