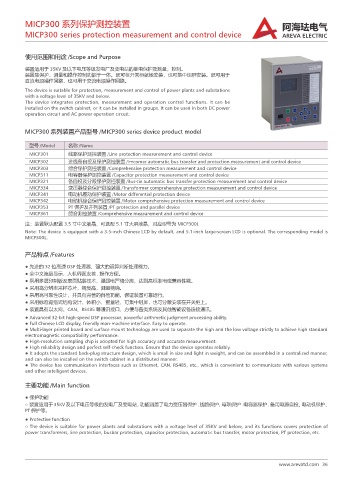

MICP300 系列保护测控装置 ୚ࡢ䚕ࣔࠩ
MICP300 series protection measurement and control device AREVA ELECTRIC

使用范围和用途 /Scope and Purpose

装置适用于 35KV 及以下电压等级发电厂及变电站的继电保护及测量，控制。
装置集保护，测量和操作控制功能于一体。既可在开关柜就地安装，也可集中组屏安装。既可用于
直流电源操作回路，也可用于交流电源操作回路。
The device is suitable for protection, measurement and control of power plants and substations
with a voltage level of 35KV and below.
The device integrates protection, measurement and operation control functions. It can be
installed on the switch cabinet, or it can be installed in groups. It can be used in both DC power
operation circuit and AC power operation circuit.

MICP300 系列装置产品型号 /MICP300 series device product model

型号 /Model 名称 /Name
MICP301 线路保护测控装置 /Line protection measurement and control device
MICP302 进线备自投及保护测控装置 /Imcomer automatic bus transfer and protection measurement and control device
MICP303 综合保护测控装置 /Comprehensive protection measurement and control device
MICP311 电容器保护测控装置 /Capacitor protection measurement and control device
MICP321 备自投及分段保护测控装置 /Bus-tie automatic bus transfer protection measurement and control device
MICP334 变压器综合保护测控装置 /Transformer comprehensive protection measurement and control device
MICP341 电动机差动保护装置 /Motor differential protection device
MICP342 电动机综合保护测控装置 /Motor comprehensive protection measurement and control device
MICP353 PT 保护及并列装置 /PT protection and parallel device
MICP361 综合测控装置 /Comprehensive measurement and control device
注：装置默认配置 3.5 寸中文液晶，可选配 5.1 寸大屏液晶，对应型号为 MICP300L
Note: The device is equipped with a 3.5-inch Chinese LCD by default, and 5.1-inch large-screen LCD is optional. The corresponding model is
MICP300L.

产品特点 /Features
● 先进的 32 位高速 DSP 处理器，强大的运算判断处理能力。
● 全中文液晶显示，人机界面友善 . 操作方便。
● 采用多层印制板及表面贴装技术，强弱电严格分离，达到高标准电磁兼容性能。
● 采用高分辨率采样芯片，精度高，测量精确。
● 采用高可靠性设计，并具有完善的自检功能。保证装置可靠运行。
● 采用标准背插式结构设计，体积小、重量轻，可集中组屏，也可分散安装在开关柜上。
● 装置具有以太网、CAN、RS485 等通讯接口，方便与各类系统及其他智能设备连接通讯。
● Advanced 32-bit high-speed DSP processor, powerful arithmetic judgment processing ability.
● Full Chinese LCD display, friendly man-machine interface. Easy to operate.
● Multi-layer printed board and surface mount technology are used to separate the high and the low voltage strictly to achieve high standard
electromagnetic compatibility performance.
● High-resolution sampling chip is adopted for high accuracy and accurate measurement.
● High reliability design and perfect self-check function. Ensure that the device operates reliably.
● It adopts the standard back-plug structure design, which is small in size and light in weight, and can be assembled in a centralized manner,
and can also be installed on the switch cabinet in a distributed manner.
● The device has communication interfaces such as Ethernet, CAN, RS485, etc., which is convenient to communicate with various systems
and other intelligent devices.

主要功能 /Main function

● 保护功能
○ 装置适用于 35KV 及以下电压等级的发电厂及变电站，功能涵盖了电力变压器保护 . 线路保护、母联保护 . 电容器保护 . 备用电源自投、电动机保护、
PT 保护等。
● Protective function
○ The device is suitable for power plants and substations with a voltage level of 35KV and below, and its functions covers protection of
power transformers, line protection, busbar protection, capacitor protection, automatic bus transfer, motor protection, PT protection, etc.
