KCXGN-12固体绝缘环网柜开关设备是本公司自行研发的新一代环保型固体绝缘环网柜。主要由三种功能单元组成，即V单元(断路器单元)，C单元(负荷开
关)，F单元(组合电器单元)，每个单元可以单独使用也可以自由扩展，其结构分为智能控制仪表室、操作机构和一次部分，仪表室可配微机保护(控制器)，
机构为专用弹操机构，一次部分采用APG自动凝胶工艺，将隔离开关和灭弧室完全封在环氧树脂中，并有专用接头和母线相边。灭弧室的设计开关选用灭
弧室采用专用的铜铬触头材料，R型纵磁场触头，以及完全一次封排工艺，该灭弧室开断短路电流能力、稳定性、电寿命、温升以及绝缘水平都较之前的灭
弧室(铜铝触头材料，杯状纵磁场触头结构，以及不完全一次封排工艺)有了明显提高。操动机构采用与开关配合一体的弹操机构，即隔离开关和主开关弹操
机构为一整体，可方便实现互锁，而且机构零件少，减少了不必要的传动环节，可靠性高，并可根据用户需要加装电动操作。
固定绝缘全封闭开关设备：是采用固体绝缘材料为主绝缘介质及导电连接、隔离开关、接地开关、主母线、分支母线等主导电回路单一或组合后用固体绝缘
介质包覆封装为一个或几个具有一定功能、可再次组合或扩展的具备全绝缘、全密封性能的模块。
三工位机构采用过中弹簧设计，具有开关和关合负荷电流的作用，并且还可以实现手动和电动操作。
KCXGN-12 solid insulated ring network cabinet switchgear is a new generation of environmentally friendly solid insulated ring network cabinet developed
by the company. It is mainly composed of three functional units, namely V unit (breaker unit), C unit (load switch), F unit (combined electric unit), each
unit can be used alone or freely, and its structure is divided into intelligent control instruments. The chamber, the operating mechanism and the primary
part, the instrument room can be equipped with a microcomputer protection (controller), the mechanism is a special elastic operation mechanism, and
the APG automatic gel process is used in one part, and the isolation switch and the arc extinguishing chamber are completely sealed in the epoxy resin.
There are special joints and busbars. The design switch of the arc extinguishing chamber uses the special copper-chromium contact material, the R-type
vertical magnetic field contact, and the complete primary sealing process. The arc-breaking chamber breaks the short-circuit current capability, stability,
electrical life and temperature. The rise and insulation levels are significantly improved compared to the previous arc-extinguishing chamber (copper-
aluminum contact material, cup-shaped longitudinal magnetic field contact structure, and incomplete primary sealing process). The operating mechanism
adopts a sliding mechanism integrated with the switch, that is, the isolating switch and the main switch playing mechanism are integrated, which can easily
realize interlocking, and has fewer mechanism parts, reduces unnecessary transmission links, and has high reliability, and Electric operation can be added
according to user needs.
Fixed insulation fully enclosed switchgear: It is made of solid insulating material as the main insulating medium and conductive connection, isolation switch,
grounding switch, main busbar, branch busbar, etc. The main conductive loop is single or combined and packaged with solid insulating medium for one or
several Fully insulated, fully sealed modules with certain functions that can be combined or expanded again.
The three-station mechanism uses a mid-spring design that has the function of switching and closing the load current, and can also be operated manually
and electrically.

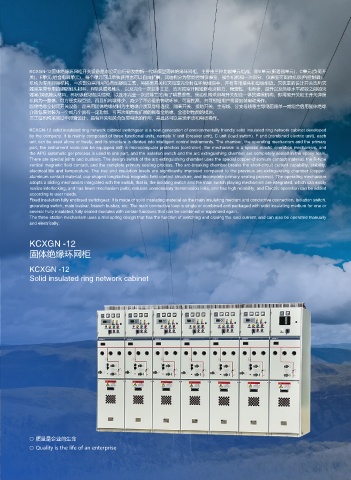

KCXGN -12
固体绝缘环网柜

KCXGN -12
Solid insulated ring network cabinet
