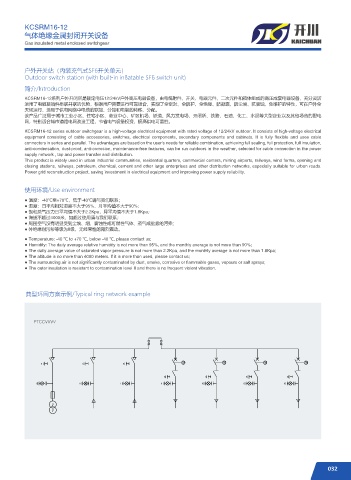

Page 43 - 山东开川电力设备有限公司

KCSRM16-12
气体绝缘金属封闭开关设备
Gas insulated metal enclosed switchgear

户外开关站（内装充气式SF6开关单元）
Outdoor switch station (with built-in inflatable SF6 switch unit)
简介/Introduction
KCSRM16-12系列户外开闭所是额定电压12/24kV户外高压电器设备，由电缆附件、开关、电器元件、二次元件和箱体组成的高压成套电器设备，充分灵活
运用了电缆接插件串联并联的优势，根据用户需要进行可靠组合，实现了全密封、全防护、全绝缘、防凝露、防尘埃、抗腐蚀、免维护的特性，可在户外全
天候运行，选用于供电网络中电缆的联接、分接和电能的转移、分配。
该产品广泛用于城市工业小区、住宅小区、商业中心、矿区机场、铁道、风力发电场、开闭所、铁路、石油、化工、水泥等大型企业以及其他场合的配电
网，特别适合城市道路电网改造工程，节省电气设备投资，提高供电可靠性。
KCSRM16-12 series outdoor switchgear is a high-voltage electrical equipment with rated voltage of 12/24kV outdoor. It consists of high-voltage electrical
equipment consisting of cable accessories, switches, electrical components, secondary components and cabinets. It is fully flexible and uses cable
connectors in series and parallel. The advantages are based on the user's needs for reliable combination, achieving full sealing, full protection, full insulation,
anti-condensation, dust-proof, anti-corrosion, maintenance-free features, can be run outdoors in the weather, selected for cable connection in the power
supply network , tap and power transfer and distribution.
This product is widely used in urban industrial communities, residential quarters, commercial centers, mining airports, railways, wind farms, opening and
closing stations, railways, petroleum, chemical, cement and other large enterprises and other distribution networks, especially suitable for urban roads.
Power grid reconstruction project, saving investment in electrical equipment and improving power supply reliability.

使用环境/Use environment
● 温度：-40℃至+70℃，低于-40℃请与我们联系；
● 湿度：日平均相对湿度不大于95%，月平均值不大于90%；
● 饱和蒸气压力日平均值不大于2.2Kpa，月平均值不大于1.8Kpa；
● 海拔不超过4000米，如超过使用请与我们联系；
● 周围空气没有明显受到尘埃、烟、腐蚀性或可燃性气体、蒸气或盐雾的污染；
● 外绝缘耐污秽等级为II级、无经常性的剧烈震动。
● Temperature: -40 ℃ to +70 ℃, below -40 ℃, please contact us;
● Humidity: The daily average relative humidity is not more than 95%, and the monthly average is not more than 90%;
● The daily average value of saturated vapor pressure is not more than 2.2Kpa, and the monthly average is not more than 1.8Kpa;
● The altitude is no more than 4000 meters. If it is more than used, please contact us;
● The surrounding air is not significantly contaminated by dust, smoke, corrosive or flammable gases, vapours or salt sprays;
● The outer insulation is resistant to contamination level II and there is no frequent violent vibration.

典型环网方案示例/Typical ring network example

PTCCVVVV

M M M M

V
V

032
