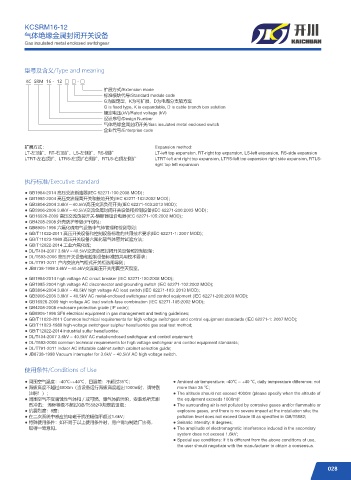

KCSRM16-12
气体绝缘金属封闭开关设备
Gas insulated metal enclosed switchgear

型号及含义/Type and meaning

KC SRM 16 - 12 □ □ - □
扩展方式/Extension mode
标准模块代号/Standard module code
G为固定型，K为可扩展，D为电缆分支箱方案
G is fixed type, K is expandable, D is cable branch box solution
额定电压(kV)/Rated voltage (kV)
设计序号/Design Number
气体绝缘金属封闭开关/Gas insulated metal enclosed switch
企业代号/Enterprise code

扩展方式： Expansion method:
LT-左顶扩、RT-右顶扩、LS-左侧扩、RS-侧扩 LT-left top expansion, RT-right top expansion, LS-left expansion, RS-side expansion
LTRT-左右顶扩、LTRS-左顶扩右侧扩、RTLS-右顶左侧扩 LTRT-left and right top expansion, LTRS-left top expansion right side expansion, RTLS-
right top left expansion

执行标准/Executive standard

● GB1984-2014 高压交流断路器(IEC 62271-100:2008 MOD)；
● GB1985-2004 高压交流隔离开关和接地开关(IEC 62271-102:2002 MOD)；
● GB3804-2004 3.6kV～40.5kV高压交流负荷开关(IEC 62271-103:2013 MOD)；
● GB3906-2006 3.6kV～40.5kV交流金属封闭开关设备和控制设备(IEC 62271-200:2003 MOD)；
● GB16926-2009 高压交流负荷开关-熔断器组合电器(IEC 62271-105:2002 MOD)；
● GB4208-2008 外壳防护等级(IP代码)；
● GB8905-1996 六氟化硫电气设备中气体管理和检测导则；
● GB/T11022-2011 高压开关设备和控制设备标准的共用技术要求(IEC 62271-1: 2007 MOD)；
● GB/T11023-1989 高压开关设备六氟化硫气体密封试验方法；
● GB/T12022-2014 工业六氟化硫；
● DL/T404-2007 3.6kV～40.5kV交流金属封闭开关设备和控制设备；
● DL/T593-2006 高压开关设备和控制设备标准的共用技术要求；
● DL/T791-2011 户内交流充气柜式开关柜选用导则；
● JB8738-1998 3.6kV～40.5kV交流高压开关用真空灭弧室。
● GB1984-2014 high voltage AC circuit breaker (IEC 62271-100:2008 MOD);
● GB1985-2004 high voltage AC disconnector and grounding switch (IEC 62271-102:2002 MOD);
● GB3804-2004 3.6kV ~ 40.5kV high voltage AC load switch (IEC 62271-103: 2013 MOD);
● GB3906-2006 3.6kV ~ 40.5kV AC metal-enclosed switchgear and control equipment (IEC 62271-200:2003 MOD);
● GB16926-2009 high voltage AC load switch-fuse combination (IEC 62271-105:2002 MOD);
● GB4208-2008 enclosure protection grade (IP code);
● GB8905-1996 SF6 electrical equipment in gas management and testing guidelines;
● GB/T11022-2011 Common technical requirements for high voltage switchgear and control equipment standards (IEC 62271-1: 2007 MOD);
● GB/T11023-1989 high-voltage switchgear sulphur hexafluoride gas seal test method;
● GB/T12022-2014 industrial sulfur hexafluoride;
● DL/T404-2007 3.6kV ~ 40.5kV AC metal-enclosed switchgear and control equipment;
● DL/T593-2006 common technical requirements for high voltage switchgear and control equipment standards;
● DL/T791-2011 indoor AC inflatable cabinet switch cabinet selection guide;
● JB8738-1998 Vacuum interrupter for 3.6kV ~ 40.5kV AC high voltage switch.

使用条件/Conditions of Use

● 周围空气温度：-40℃~+40℃，日温差：不超过35℃； ● Ambient air temperature: -40℃ ~ +40 ℃, daily temperature difference: not
● 海拔高度不超过4000m（当设备运行海拔高度超出1000m时，请特别 more than 35 ℃;
注明！）； ● The altitude should not exceed 4000m (please specify when the altitude of
● 周围空气不受腐蚀性气体和／或可燃、爆气体的污染，安装场所无剧 the equipment exceeds 1000m)!
烈冲击； 污秽等级不超过GB/T5582中规定的Ⅲ级； ● The surrounding air is not polluted by corrosive gases and/or flammable or
● 抗震烈度：8度； explosive gases, and there is no severe impact at the installation site; the
● 在二次系统中感应的电磁干扰的幅值不超过1.6kV； pollution level does not exceed Grade III as specified in GB/T5582;
● 特殊使用条件：如不同于以上使用条件时，用户需与制造厂协商， ● Seismic intensity: 8 degrees;
取得一致意见。 ● The amplitude of electromagnetic interference induced in the secondary
system does not exceed 1.6kV;
● Special use conditions: If it is different from the above conditions of use,
the user should negotiate with the manufacturer to obtain a consensus.

028
