XGN66-12型固定式封闭开关设备(以下简称开关柜)是我公司新一代高压电器成套产品，符合国家标准GB3906《-35kV交流金属
封闭开关设备》电力部DLT404《户内交流高压开关柜订货技术条件》的要求，也满足国际标准IEC60298《1kV以上52kV以下
交流金属封闭开关设备和控制设备的要求》。
该产品吸收了国外的先进技术，它体积小，仅是普通开关柜体积的50%，断路器具有可靠性高，性能好；“五防”联锁机构可
靠、简单等优点。开关柜是3.6、7.2、12kV三相交流电50Hz单母线分段的户内成套装置，作为接受和分配电能之用。并具有对
电路进行控制、保护和监测等功能，可使用在各类型发电厂、变电站及工矿企业，高层建筑等场所，也可与环网柜组合应用于
开闭所中。

Type XGN66-12 fixed enxlosed switchgear ( herein after referred to as cabinet ) is a new generation of HV equipment in our
company . It complies with the requirement of GB3906《- AC emtal enclosed switchgear at 35kV 》and DLT404《Ordering
requirement for indoor ACHV switchgear cabinet 》 and of IEC60298《Requirement of AC metal enclosed switchgear and
control gear above 1kV and below 52kV》.
The product absorbs advanced technology both at home and abroad , is small in size and is only 50% of normal cabinet . The
circuit breaker breaker has high reliability and “Five prevention” interlock mechanism is reliable . The switchgear cabinet is
3.6,7.2,12k three-phase AC 50Hz indoor device with single bus section for receiving and distributing power and also controlling
, protecting and monitoring circuit . It can be used in various power plants, substations, enterprises ,high buildings and can be
combned with ring mian unit .

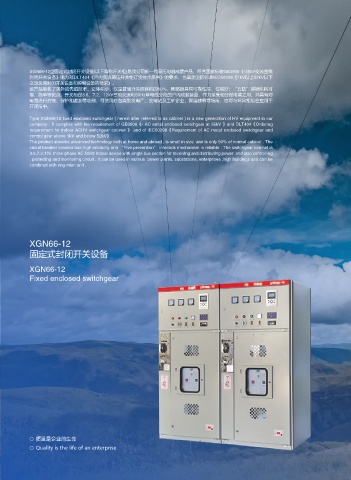

XGN66-12
固定式封闭开关设备

XGN66-12
Fixed enclosed switchgear

质量是企业的生命
Quality is the life of an enterprise
