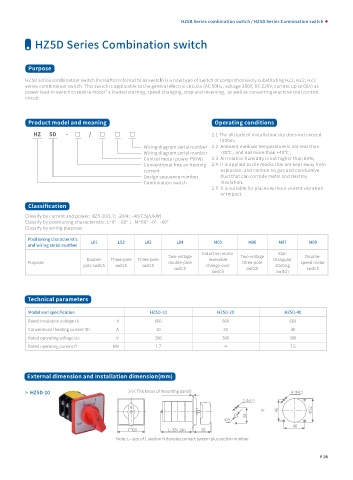

HZ5B Series combination switch / HZ5D Series Combination switch

HZ5D Series Combination switch

Purpose

HZ5D series combination switch (hereafter referred to as switch) is a new type of switch of comprehensively substituting HZ1, HZ2, HZ3
series combination switch. This switch is applicable to the general electric circuits (AC 50Hz, voltage 380V, DC 220V, current up to 60A) as
power lead-in switch to realize motor’s loaded starting, speed changing, stop and reversing, as well as converting machine tool control
circuit.

Product model and meaning Operating conditions
HZ 5D - □ / □ □ □ 2.1 The altitude of installation site does not exceed
1000m;
Wiring diagram serial number 2.2 Ambient medium temperature is not less than
Wiring diagram serial number -30℃ , and not more than +40℃ ;
Control motor power P(KW) 2.3 Air relative humidity is not higher than 80%;
Conventional free air heating 2.4 It is applied to the media that are kept away from
current explosion, and contain no gas and conductive
Design sequence number dust that can corrode metal and destroy
Combination switch insulation.
2.5 It is suitable for places without violent vibration
or impact.
Classification
Classify by current and power: HZ5-10/1.7；-20/4；-40/7.5(A/kW)
Classify by positioning characteristic: L=0° -60° ； M=60° -0° -60°
Classify by wiring purpose:
Positioning characteristic
L01 L02 L03 L04 M05 M06 M07 M08
and wiring serial number
Induction motor Star-
Two-voltage Two-voltage Double-
Double- Three-pole Three-pole reversible triangular
Purpose double-pole three-pole speed motor
pole switch switch switch change-over starting
switch switch switch
switch switch

hn
i
e
c
T 技术参数al parameters
c
Model and specification HZ5D-10 HZ5D-20 HZ5D-40
Rated insulation voltage Ui V 660 660 660
Conventional heating current Ith A 10 20 40
Rated operating voltage Ue V 380 380 380
Rated operating current P KW 1.7 4 7.5

External dimension and Installation dimension(mm)

1-6（ Thickness of mounting panel）
> HZ5D-10 4-Φ4.5
2-Φ4.5
or 46 Φ52
34
Φ8
46
□60 L=35+14n 38
Note: L= size of 1 section N denotes contact system plus section number.
