P. 48

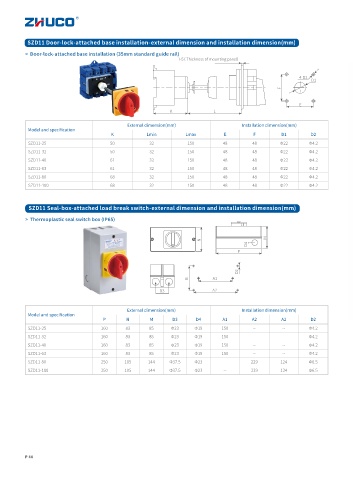

SZD11 Door-lock-attached base installation-external dimension and installation dimension(mm)
> Door-lock-attached base installation (35mm standard guide rail)
1-5（ Thickness of mounting panel）
4-D2
D1
F
E
K L
External dimension(mm) Installation dimension(mm)
Model and specification
K Lmin Lmax E F D1 D2
SZD11-25 50 32 150 48 48 Φ22 Φ4.2
SZD11-32 50 32 150 48 48 Φ22 Φ4.2
SZD11-40 61 32 150 48 48 Φ22 Φ4.2
SZD11-63 61 32 150 48 48 Φ22 Φ4.2
SZD11-80 68 32 150 48 48 Φ22 Φ4.2
SZD11-100 68 32 150 48 48 Φ22 Φ4.2
SZD11 Seal-box-attached load break switch-external dimension and installation dimension(mm)
> Thermoplastic seal switch box (IP65)
M
N
D4
P
D2
B A1
D3 A2
External dimension(mm) Installation dimension(mm)
Model and specification
P N M D3 D4 A1 A2 A2 D2
SZD11-25 160 83 85 Φ23 Φ19 150 -- -- Φ4.2
SZD11-32 160 83 85 Φ23 Φ19 150 -- -- Φ4.2
SZD11-40 160 83 85 Φ23 Φ19 150 -- -- Φ4.2
SZD11-63 160 83 85 Φ23 Φ19 150 -- -- Φ4.2
SZD11-80 250 105 144 Φ37.5 Φ23 -- 229 124 Φ6.5
SZD11-100 250 105 144 Φ37.5 Φ23 -- 229 124 Φ6.5
P 44
