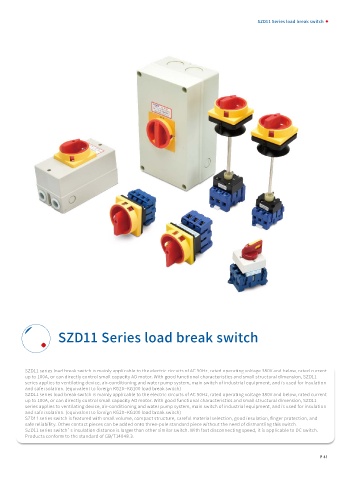

SZD11 Series load break switch

SZD11 Series load break switch

SZD11 series load break switch is mainly applicable to the electric circuits of AC 50Hz, rated operating voltage 380V and below, rated current
up to 100A, or can directly control small capacity AD motor. With good functional characteristics and small structural dimension, SZD11
series applies to ventilating device, air-conditioning and water pump system, main switch of industrial equipment, and is used for insulation
and safe isolation. (equivalent to foreign KG20~KG100 load break switch)
SZD11 series load break switch is mainly applicable to the electric circuits of AC 50Hz, rated operating voltage 380V and below, rated current
up to 100A, or can directly control small capacity AD motor. With good functional characteristics and small structural dimension, SZD11
series applies to ventilating device, air-conditioning and water pump system, main switch of industrial equipment, and is used for insulation
and safe isolation. (equivalent to foreign KG20~KG100 load break switch)
SZD11 series switch is featured with small volume, compact structure, careful material selection, good insulation, finger protection, and
safe reliability. Other contact pieces can be added onto three-pole standard piece without the need of dismantling this switch.
SZD11 series switch’s insulation distance is larger than other similar switch. With fast disconnecting speed, it is applicable to DC switch.
Products conform to the standard of GB/T14048.3.
