P. 41

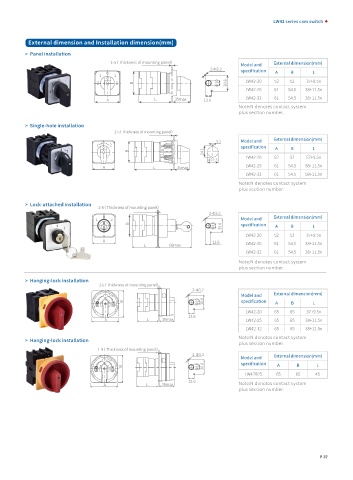

LW42 series cam switch
External dimension and Installation dimension(mm)
> Panel installation
1-5（ Thickness of mounting panel） External dimension(mm)
Model and
2-Φ3.2 specification
0 A B L
1 1
2 2 B Φ10 30.6 LW42-20 52 52 37+9.5n
LW42-25 61 54.5 38+11.5n
A L 35max 12.6 LW42-32 61 54.5 38+11.5n
Note:N denotes contact system
plus section number.
> Single-hole installation
1-5（ Thickness of mounting panel）
0 3.2 Model and External dimension(mm)
1 2 specification
24.1
B A B L
LW42-20 52 52 57+9.5n
Φ22.3
LW42-25 61 54.5 58+11.5n
A L 35max
LW42-32 61 54.5 58+11.5n
Note:N denotes contact system
plus section number.
> Lock-attached installation
1-5（ Thickness of mounting panel）
2-Φ3.2
0 External dimension(mm)
1 2 Model and
Φ10 30.6 A B L
B specification
LW42-20 52 52 37+9.5n
A 12.6
L 68max LW42-25 61 54.5 38+11.5n
LW42-32 61 54.5 38+11.5n
Note:N denotes contact system
plus section number.
> Hanging-lock installation
1-5（ Thickness of mounting panel）
2-Φ3.2
External dimension(mm)
Model and
B Φ10 30.6 specification A B L
OFF NO
LW42-20 65 65 37+9.5n
12.6
A L 36max LW42-25 65 65 38+11.5n
LW42-32 65 65 38+11.5n
Note:N denotes contact system
> Hanging-lock installation
plus section number.
1-5（ Thickness of mounting panel）
2-Φ3.2 External dimension(mm)
Model and
B Φ10 30.6 specification A B L
OFF NO
LW42B25 65 65 45
12.6
A L 36max Note:N denotes contact system
plus section number.
P 37
